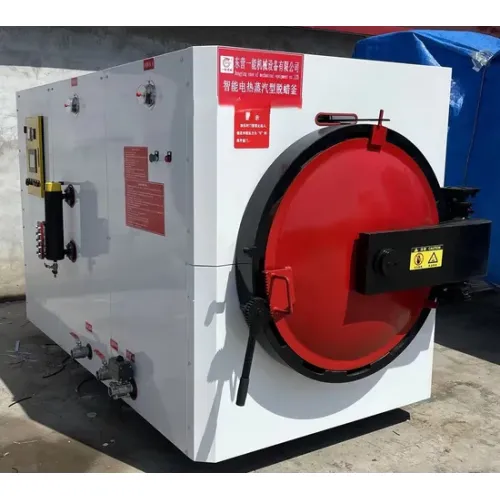

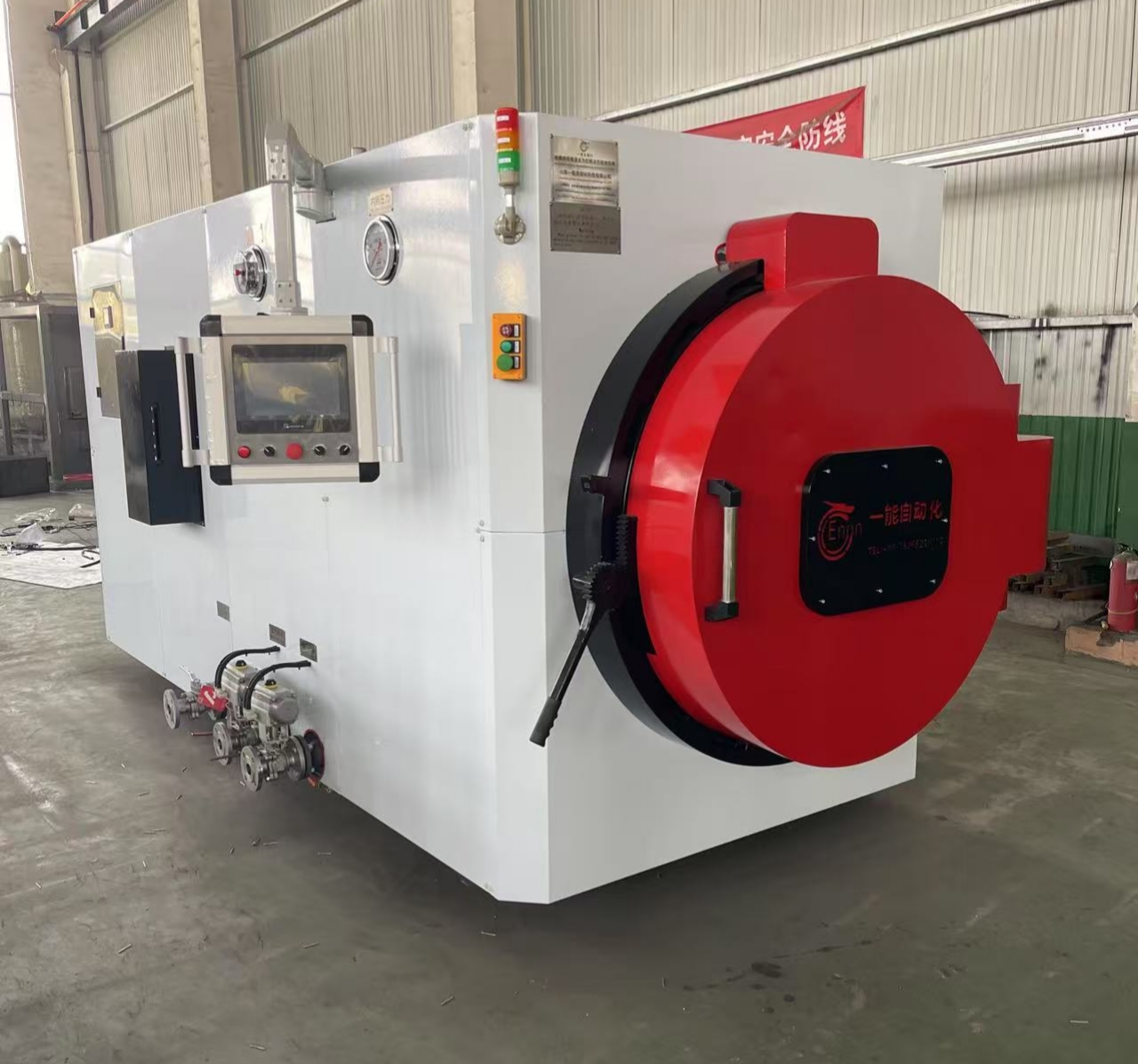

Dewaxing Equipment High-pressure Dewaxing Kettle

Dewaxing Equipment High-pressure Dewaxing Kettle

Payment Type:	L/C,T/T
Incoterm:	FOB,EXW,CIF
Transportation:	Ocean,Land
Port:	qingdao
option:	YN-DTF-1200Z

$23240- /Piece/Pieces

23240USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information

Product Attributes

Model No.: YN-DTF-1200Z

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Manufacturing Plant, Other

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Wooden box packaging
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1. Technical parameters

Specifications and models	YN-DTF-1200Z
Workspace	1200×1500
work pressure	0.85
Operating temperature	185
design pressure	0.95
Installed power	153kw
Main control mode	Three-stage
Water supply method	Fully automatic + manual
Dimensions	L4250×W2050×H2150mm
equipment weight	4.2T

2. Product Description

1)This equipment consists of seven parts: furnace body, kettle body, kettle door, water supply system, valve system, heating system, and

electronic control system. The stainless steel barrel and head are all made of boiler-specific stainless steel. The wax discharge double-layer pipe,

The wax receiving troughs are all made of stainless steel, and the materials used comply with the national "Pressure Vessel Inspection Standards".

Each equipment is equipped with two sets of trolleys and baskets for loading molded shells.

2) The kettle body adopts a double-gallbladder type, and the kettle door adopts a ring gear structure. The inner tank body is made of Q235B and

the outer tank body is made of Q235B.

3) The pressure control in the furnace body adopts advanced pressure transmitter and three-stage pressure control to realize fully automatic

pressure increase and half power to maintain the working pressure. The kettle adopts closed-circuit control of air pressure and performs full-

process pressure transformation control to achieve large pressure difference quickly. Pressure boost, low-pressure exhaust, pressure-limited wax

discharge, air intake, exhaust, drainage, and wax discharge can be completed with one click, effectively preventing shell cracks and greatly

reducing energy consumption.

4) The water level is controlled by probe sensing. The upper limit stops water supply, the lower limit starts the high-pressure pump that comes with

the device, and the lower limit stops the operation of the device. Make the operation reliable, safe to use and more energy-saving.

5) The equipment comes with mechanical pressure protection, electronic pressure protection and temperature-controlled indirect pressure

protection to ensure that the furnace pressure operates within the rated pressure range.

Supply Ability & Additional Information

Packaging: Wooden box packaging

Transportation: Ocean,Land

Supply Ability: 2 Set/Sets Per Month

Certificate: ISO 9001:2015

Port: qingdao

Payment Type: L/C,T/T

Incoterm: FOB,EXW,CIF
