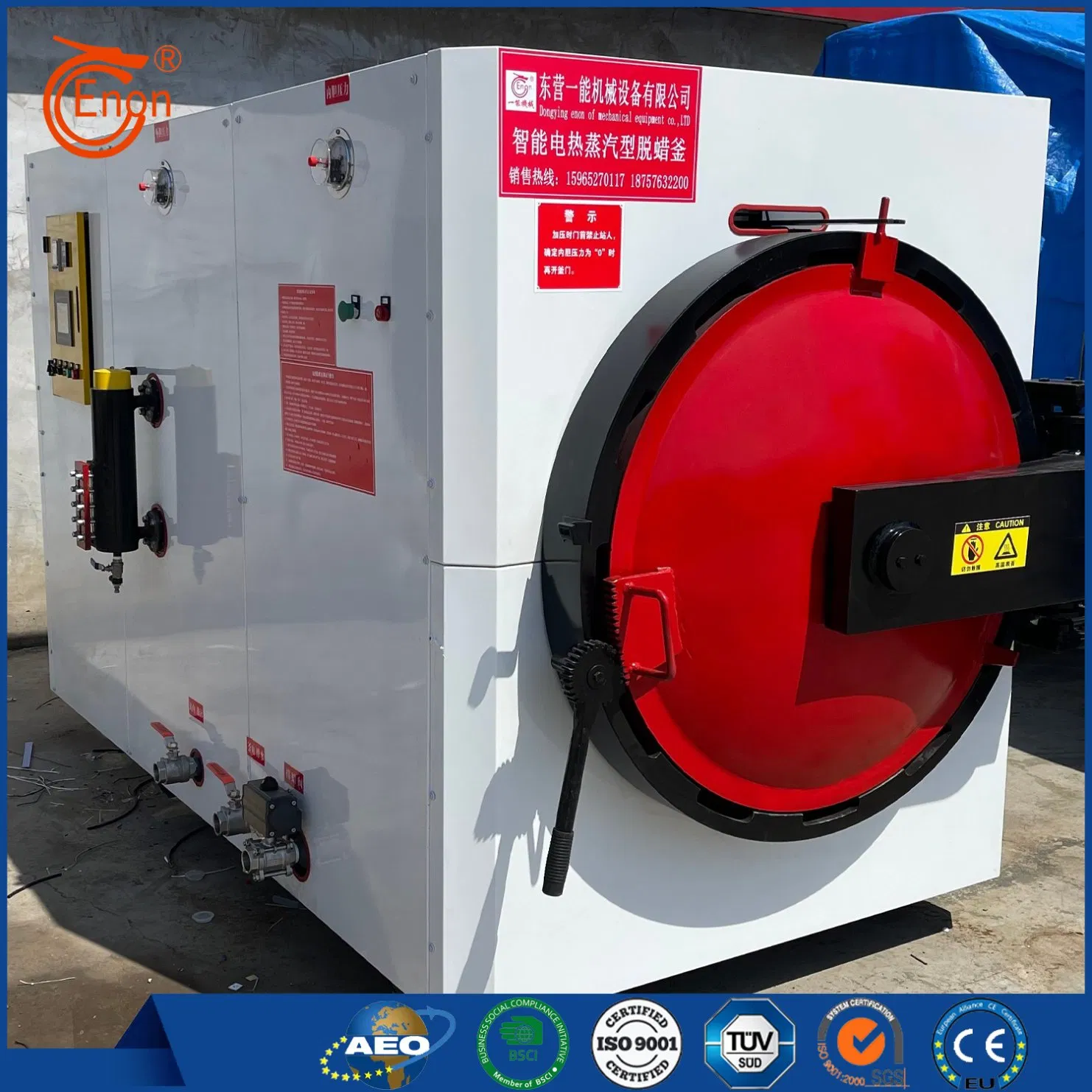

Dewaxing Machine for Investment Foundry

Name: Chinese Factory Produces 1000/1200/1400/1600mm Smelting of Model Structure Dewaxing Boilerclaves/ Kettle for Melting The Model Structure1
Uploaded: 2025-06-23T04:13:10+08:00
Description: 1.Equipment advantages: 1.PLC program control ensures logically interlocked control of temperature,

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	qingdao
Model:	YN-DTF-1000Z

$15800- /Piece/Pieces

15800USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information

Product Attributes

Model No.: YN-DTF-1000Z

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Manufacturing Plant, Other

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Wooden box packaging
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1.Equipment advantages:

1.PLC program control ensures logically interlocked control of temperature, pressure, water level, inflation, pressure maintenance, exhaust, and access doors, achieving fully automated control except for the opening and closing of the access doors and the loading and unloading of materials.

2.The equipment features built-in mechanical pressure protection, electronic pressure protection, and temperature-controlled indirect pressure protection to ensure that the furnace pressure operates within the rated pressure range. The kettle door is equipped with mechanical and electronic interlocks to ensure seamless operation.

3.Good dewaxing effect: it can fully separate the wax from the mold shell, reduce residue, ensure the cleanliness of the mold shell, provide a good foundation for subsequent pouring links, and reduce the defect rate of castings.

4.In today's industrial manufacturing landscape, electric steam dewaxing reactors play a vital role. With their outstanding performance and thoughtful design, they provide efficient, safe, and energy-efficient dewaxing solutions for numerous industries.

2,Technical parameter

Model	YN-DTF-1000Z
working space	φ1000×1100mm
working pressure	0.85MPa
working temperature	185ºC
Design pressure	0.95MPa
Voltage regulating range	0~0.85MPa
Boost rate	0.6MPa/5s
power	380V/50Hz 123kw
dimensions	3200×1740×1940

Supply Ability & Additional Information

Packaging: Wooden box packaging

Transportation: Ocean,Land

Supply Ability: 120piece/year

Certificate: ISO 9001:2015

Port: qingdao

Payment Type: T/T

Incoterm: FOB,CIF,EXW
