Advanced steam dewaxing pot

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Land,Ocean
Port:	qingdao
Model:	YN-DTF-1200Z

$23240- /Piece/Pieces

23240USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information

Product Attributes

Model No.: YN-DTF-1200Z

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Other, Manufacturing Plant

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Wooden box packaging
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1,Technical parameter

Model	YN-DTF-1200Z
working space	φ1200×1500mm
working pressure	0.85MPa
working temperature	185ºC
Design pressure	0.95MPa
Voltage regulating range	0~0.85MPa
Boost rate	0.6MPa/5s
power	380V/50Hz 153kw
dimensions	4250×2050×2150
weight	4.2T

2. Equipment Configuration

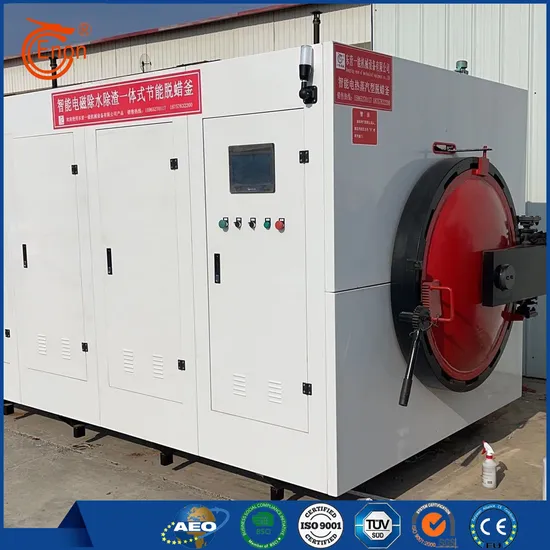

This electric steam dewaxing kettle consists of seven core systems: the furnace body, kettle body, kettle door, water supply system, valve system, heating system, and electronic control system. The main structure, including the furnace body and kettle body, is made of high-quality boiler-grade stainless steel, offering excellent high-temperature corrosion resistance and high-pressure stability. The kettle door utilizes a high-strength gear ring locking mechanism, ensuring a reliable seal and easy operation. The inner liner is made of 345R pressure vessel steel, while the outer liner is made of Q235B carbon steel. This double-layer pressure-bearing design enhances overall structural strength while effectively improving thermal insulation and significantly reducing heat loss.

In addition, the double-layer wax discharge pipe and wax receiving trough are both made of stainless steel, offering strong corrosion resistance and ensuring long-term unobstructed and clean operation, preventing corrosion contamination that may affect dewaxing quality. All pressure-bearing components of the equipment are selected and manufactured in strict accordance with the national "Regulations on Safety Technical Supervision of Pressure Vessels" to ensure safe and reliable operation. Each system comes standard with two mold transfer carts and accompanying material baskets, greatly facilitating mold loading and removal, thereby improving overall production efficiency.

Supply Ability & Additional Information

Packaging: Wooden box packaging

Transportation: Land,Ocean

Supply Ability: 120piece/year

Certificate: ISO 9001:2015

Port: qingdao

Payment Type: T/T

Incoterm: FOB,CIF,EXW
