Product Attributes

Model No.: YN-DTF-1200Z

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Other

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Wooden box packaging
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1.Water Supply System

The water supply system provides a stable water supply to the equipment, ensuring continuous steam generation during the dewaxing process. This system utilizes an automatic water supply design. When the water level falls below a set point, the supply pump automatically activates and replenishes the water tank, ensuring normal operation of the equipment. The water supply system is also equipped with a water filtration device to effectively remove impurities and minerals from the water, preventing scale formation, extending the equipment's service life, improving steam purity, and further enhancing dewaxing results.Furnace Body

The furnace body is constructed from high-quality boiler-grade stainless steel. This material not only ensures durability and reliability, but also allows for stable operation in high-temperature and high-pressure environments, providing a solid foundation for long-term, stable operation.

2,Technical parameter

Model	YN-DTF-1200Z
working space	φ1200×1500mm
working pressure	0.85MPa
working temperature	185ºC
Design pressure	0.95MPa
Voltage regulating range	0~0.85MPa
Boost rate	0.6MPa/5s
power	380V/50Hz 153kw
dimensions	4250×2050×2150
weight	4.2T

3. Water Supply System

The water supply system provides a stable water supply to the equipment, ensuring continuous steam generation during the dewaxing process. This system utilizes an automatic water supply design. When the water level falls below a set point, the supply pump automatically activates and replenishes the water tank, ensuring normal operation of the equipment. The water supply system is also equipped with a water filtration device to effectively remove impurities and minerals from the water, preventing scale formation, extending the equipment's service life, improving steam purity, and further enhancing dewaxing results.

4.Kettle Body

The kettle body features a dual-chamber design, with the inner tank constructed from high-strength 345R material and the outer tank constructed from Q235B material. This unique structural design not only enhances the equipment's strength and thermal insulation, but also effectively improves thermal energy utilization, making the dewaxing process more efficient and energy-efficient. (III) Kettle Door

The kettle door utilizes a gear ring structure and is equipped with both mechanical and electronic interlocks, providing dual safeguards to ensure safe and reliable operation. The sealing ring is embedded in the design, with air pressure creating a seal upon intake, ensuring a reliable seal. The door hinges and bearing seats are constructed of high-strength materials and have a limit stop after full opening, effectively preventing damage and the door from falling, providing a solid foundation for long-term, stable operation of the equipment.

Supply Ability & Additional Information

Packaging: Wooden box packaging

Transportation: Ocean,Land

Supply Ability: 120piece/year

Certificate: ISO 9001:2015

Port: qingdao

Payment Type: T/T

Incoterm: FOB,CIF,EXW

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	qingdao
Model:	YN-DTF-1200Z

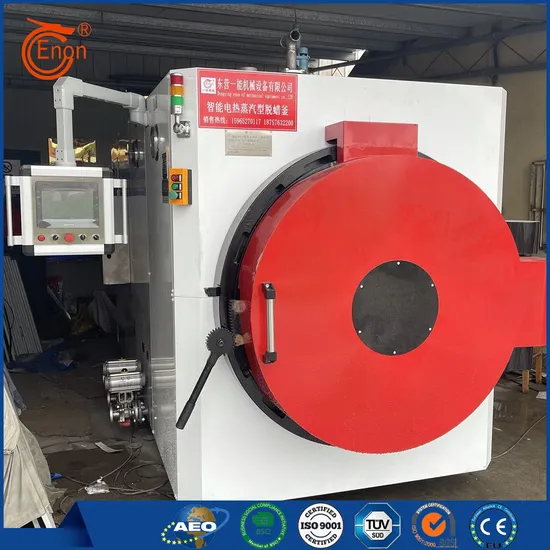

Lost wax casting autoclave
