High Performance Electric Box Furnace Solutions

High Performance Electric Box Furnace Solutions

$17400- /Piece/Pieces

Payment Type:	T/T
Incoterm:	FOB,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	Qingdao

Option:

YN-XPL-1.4*1.3

Contact Now

Product Description

Product Attributes

Model No.: YN-XPL-1.4*1.3

Brand: Enon

Certification: ISO9001:2015

Molding Technics: /Precision Casting

Application: Machinery Parts

Material: Carbon Steel

Surface Preparation: Spray-Paint

Surface Roughness: Ra0.1

Machining Tolerance: +/-0.02mm

Standard: GB

Certification: ISO 9001:2015

After-sales Service: 1years

Warranty: 1years

The Use Of Voltage: 380V

Weight Of Equipment: 6.0t

Transport Package: Tray

Specification: 1.4*1.3

Trademark: Enon

Origin: Made in China

Production Capacity: 500piece/Year

Customization: Available

Casting Method: Directional Crystallization

Process: Lost Wax Casting

Shipping Cost: Contact the supplier about freight and estimated delivery time.

Machine Type: Hot Chamber Die Casting Machine

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Place Of Origin: China

Old And New: New

Warranty Period: 1 Year

Core Selling Point: Energy Saving

Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support, Spare Parts

Applicable Industry: Energy &Amp; Mining

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	wooden box package
Picture Example	:

The file is encrypted. Please fill in the following information to continue accessing it

Large Capacity Industrial Furnace Investment Casting Regenerative Saving Roaster Good Sell1



Product Description

1,Technical parameter

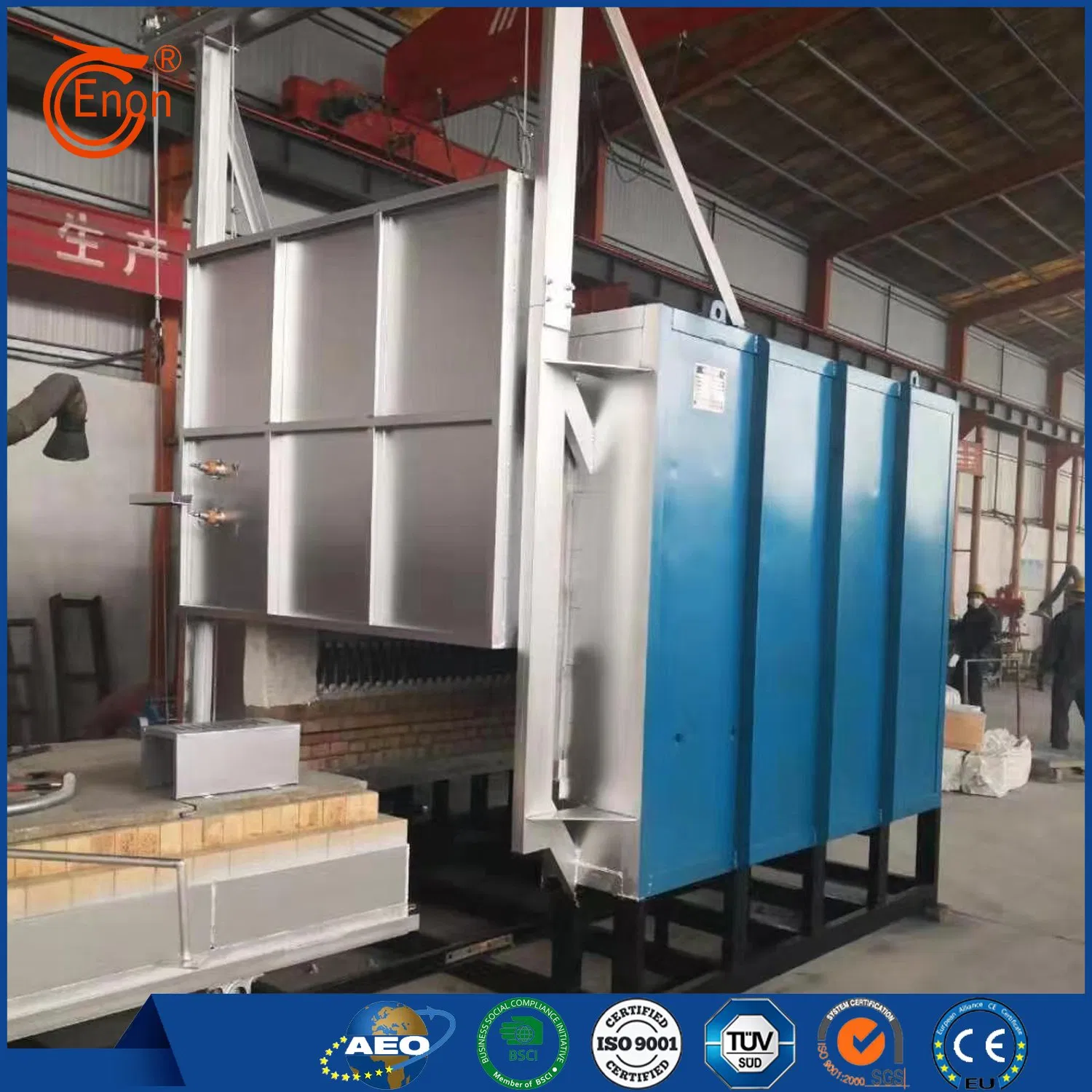

Product name	The high standard electric box roasting furnace
Model	unit	YN-XPL-1.4*1.3
Active furnace space	mm	(14001300700)
Throat size	mm	(580*580)
Rated working temperature	ºC	≤1200
Installed power	KW	150-180
The use of voltage		380V
Installation dimensions	mm	375023002600
Weight of equipment	T	6.0

Note: The equipment specifications and models can be customized according to customer requirements.

2.Product advantages
2.1 Features a large loading capacity, strong heat treatment capability for large workpieces, high efficiency, and low operating costs.

2.2 The furnace lining adopts a complete fiber structure, which significantly improves thermal insulation performance compared to brick-lined furnaces.

2.3 For small and medium-sized furnaces, no foundation installation is required; they can be integrated with tracks and used on level ground.

2.4 Large electric furnaces employ zonal heating, with heating elements installed on the furnace door, rear wall, and passageways to enhance temperature uniformity. Additionally, large electric furnaces are equipped with multiple sets of automatic temperature control cabinets for independent zonal heating control.

2.5 The operation of the furnace door and bogies is fully automated. Each electrical cabinet is equipped with multiple instruments and automatic observers to provide relevant data.
