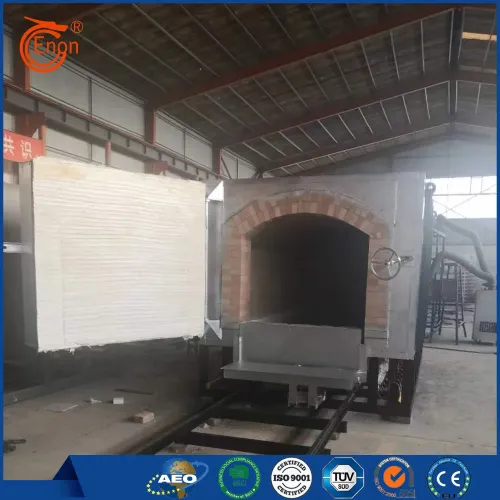

Advanced Box-Type Gas Roasting Furnace for Industrial Use

Advanced Box-Type Gas Roasting Furnace for Industrial Use

Payment Type:	T/T
Incoterm:	FOB,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	Qingdao
option:	YN-XPL-1.4*1.3

$17400- /Piece/Pieces

17400USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: YN-XPL-1.4*1.3

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Manufacturing Plant, Machinery Repair Shops, Other

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	wooden box package
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1,Technical parameter

Product name	The high standard electric box roasting furnace
Model	unit	YN-XPL-1.4*1.3
Active furnace space	mm	(14001300700)
Throat size	mm	(580*580)
Rated working temperature	ºC	≤1200
Installed power	KW	150-180
The use of voltage		380V
Installation dimensions	mm	375023002600
Weight of equipment	T	6.0

Note: The equipment specifications and models can be customized according to customer requirements.

2.Product advantages

I. Core Advantages: Dual breakthroughs in energy efficiency and environmental protection

Thermal efficiency up to 95%, energy saving rate 40%-50%

The regenerative combustion furnace stores and releases heat through heat storage elements (such as ceramic balls, honeycomb structures), preheating the combustion air to over 1000°C, ensuring more efficient fuel combustion. For example, a certain type of combustion furnace using natural gas as fuel can operate continuously for 6 hours with 50 kilograms of liquefied gas, and based on a calculation of 30 minutes of rapid melting per furnace, it can complete the baking of 11-12 mold shells, with a thermal efficiency 30%-50% higher than that of traditional furnaces.

Low-oxygen combustion technology reduces oxidation loss

Using staged mixed combustion technology, the primary air and fuel do not fully combust on the slab surface, and the secondary air reacts with the incomplete combustion products, reducing the oxidation loss rate of the workpiece and reducing nitrogen oxides (NOx) emissions. For example, the regenerative mold shell combustion furnace of Zhengzhou Zhongwei Environmental Protection Equipment Co., Ltd. uses a PLC automatic control system to adjust the gas and air ratio, making NOx emissions meet environmental protection standards.

Recovery and utilization of waste heat from exhaust gases

During the passage of the high-temperature exhaust gas through the heat storage element, the heat is recovered to preheat new air, and the exhaust gas temperature drops below 200°C before being discharged, significantly reducing energy waste. Some equipment (such as RTO regenerative combustion furnaces) can also use the residual heat for heating other areas of the enterprise, further enhancing economic benefits.

II. Technical Features: Modular Design and Precise Control

Structural optimization, strong adaptability

Single chamber/double chamber design: Choose flexibly based on production capacity requirements. The furnace lining uses refractory bricks or fiber structures, balancing high-temperature resistance and insulation performance.

Fast temperature rise: Reach the working temperature (such as 1150°C) in 15-20 minutes, reducing non-production time.

Temperature uniformity: The temperature fluctuation of the furnace is controlled within ±3°C, ensuring the heating quality of the workpiece.

Intelligent control system ensures safety and stability

Automatic ignition and extinguishing protection: Equipped with an electronic ignition device and flame monitoring system, it automatically cuts off the gas supply in case of abnormal conditions.

Pressure and temperature interlock control: When the gas pressure, air pressure, or furnace pressure is abnormal, the system automatically stops and alarms.

Data recording and remote monitoring: Some high-end models support real-time monitoring of combustion efficiency, exhaust gas composition, etc., facilitating operation optimization.

Low maintenance cost and long lifespan

Heat storage elements can be replaced: Ceramic balls or honeycomb structures can be quickly replaced when worn out, extending the overall lifespan of the equipment.

Modular design: Key components such as fans and reversing valves are installed independently, allowing for maintenance without affecting the overall operation.

Supply Ability & Additional Information

Packaging: wooden box package

Transportation: Ocean,Land

Supply Ability: 500piece/Year

Certificate: ISO9001:2015

Port: Qingdao

Payment Type: T/T

Incoterm: FOB,EXW
