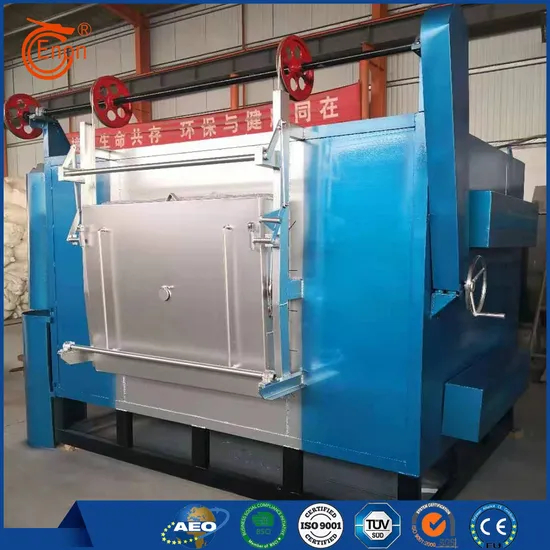

Industrial Roasting Furnace Equipment

Payment Type:	T/T
Incoterm:	FOB,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	Qingdao
option:	YN-XPL-1.4*1.3

$17400- /Piece/Pieces

17400USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: YN-XPL-1.4*1.3

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Machinery Repair Shops, Manufacturing Plant, Other

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	wooden box package
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1,Technical parameter

Product name	The high standard electric box roasting furnace
Model	unit	YN-XPL-1.4*1.3
Active furnace space	mm	(14001300700)
Throat size	mm	(580*580)
Rated working temperature	ºC	≤1200
Installed power	KW	150-180
The use of voltage		380V
Installation dimensions	mm	375023002600
Weight of equipment	T	6.0

Note: The equipment specifications and models can be customized according to customer requirements.

2.Product advantages
2.1 Strong carrying capacity: It can perform heat treatment operations on large workpieces, with outstanding processing capabilities, high operation efficiency, and low operating costs.

2.2 Excellent insulation performance: The furnace lining adopts a fully fiber structure design, which significantly improves the overall insulation performance of the equipment compared to traditional brick-lined furnaces.

2.3 High installation convenience: Small and medium-sized furnaces do not require separate foundation pouring. The furnace body integrates a track structure, and can be directly put into use on a flat surface.

2.4 High temperature control accuracy: Large electric furnaces adopt multi-zone heating methods. To improve the uniformity of the furnace chamber temperature, heating elements are evenly distributed at the furnace door, rear wall, and trolley positions. High-power electric furnaces are equipped with multiple automatic temperature control cabinets, which can separately achieve automatic temperature control for each heating area.

2.5 High operation automation level: The operation of the furnace door and trolley is in a fully automatic control mode. Each electrical control cabinet is equipped with multiple instruments and automatic monitoring devices, which can monitor the operating status of the equipment in real time.

Supply Ability & Additional Information

Packaging: wooden box package

Transportation: Ocean,Land

Supply Ability: 500piece/Year

Certificate: ISO9001:2015

Port: Qingdao

Payment Type: T/T

Incoterm: FOB,EXW
