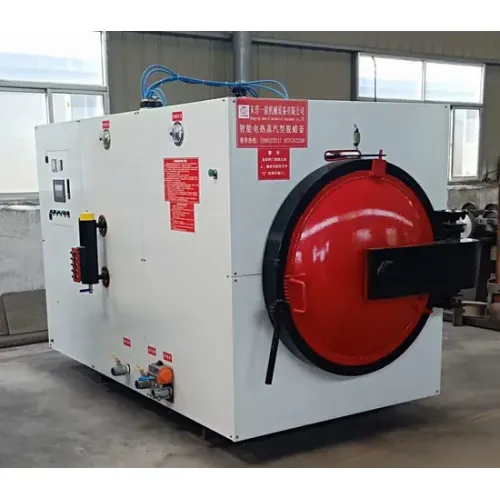

Steam Dewaxing Kettle for Precision Casting

Steam Dewaxing Kettle for Precision Casting

$26180- /Piece/Pieces

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	qingdao

Model:

YN-DTF-1400Z

Contact Now

Product Description

Product Attributes

Packaging & Delivery

Product Description

Product Attributes

Model No.: YN-DTF-1400Z

Brand: Enon

Certification: ISO 9001:2015

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Manufacturing Plant, Other

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Wooden box packaging
Picture Example	:

The file is encrypted. Please fill in the following information to continue accessing it

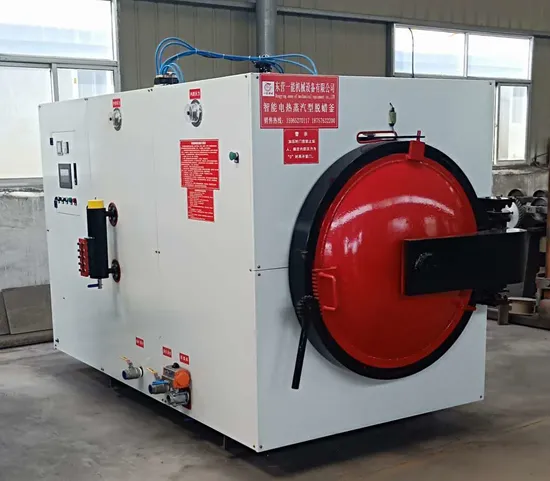

Investment Casting Foundry Dewaxing Machine1



Product Description

1,Technical parameter

Model	YN-DTF-1400Z
working pressure	0.85MPa
working temperature	185ºC
Design pressure	0.95MPa
Voltage regulating range	0~0.85MPa
Boost rate	0.6MPa/5s
power	380V/50Hz 243kw

2. Sturdy and Durable Kettle Structure

The kettle body of this equipment utilizes a dual-body design, with the inner kettle constructed from high-strength 345R material and the outer kettle from Q235B. The door hinges and bearing housing are also made of high-strength materials, and a stopper is installed when fully opened to effectively prevent the door from damage or falling, providing a solid guarantee for long-term, stable operation. This combination not only enhances the equipment's strength but also significantly improves thermal insulation and thermal energy efficiency. The kettle door utilizes a gear ring structure and features both mechanical and electronic interlocking devices, providing dual protection and ensuring safe and reliable operation. The seal is embedded in the design, and air pressure pushes it out upon intake, ensuring a reliable seal.
