Model No.: YN-DTF-1600Z
Brand: Enon
Place Of Origin: China
Old And New: New
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Marketing Type: New Product 2020
Core Component Warranty Period: 1 Year
Core Components: Plc
Warranty Period: 1 Year
Core Selling Point: Easy To Operate
Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support, Spare Parts
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None
Showroom Location (in Which Countries Are There Sample Rooms Overseas): None
Applicable Industry: Manufacturing Plant, Other
| Selling Units: | Piece/Pieces |
| Package Type: | Wooden box packaging |
| Picture Example: |
|
The file is encrypted. Please fill in the following information to continue accessing it
1,technical parameter | Model | YN-DTF-1600Z | ||||
| working pressure | 0.85MPa | ||||
| working temperature | 185ºC | ||||
| Design pressure | 0.95MPa | ||||
| Voltage regulating range | 0~0.85MPa | ||||
| Boost rate | 0.6MPa/5s | ||||
| power | 380V/50Hz 303kw | ||||

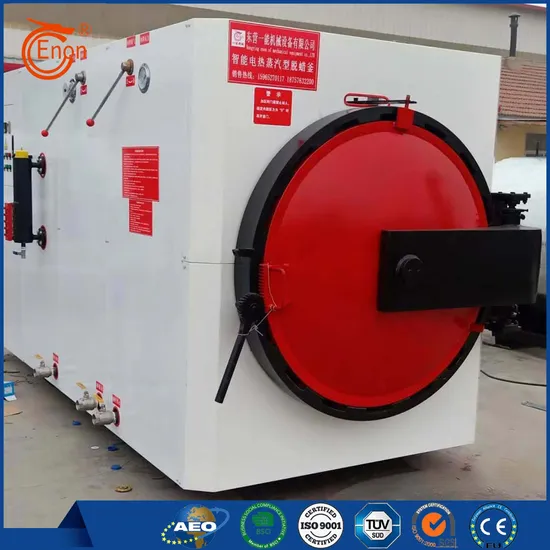

2.Structural Design: Engineered for Excellence
Comprising seven fundamental components, the electric steam dewaxing kettle exemplifies precision engineering, where each element is carefully designed and manufactured to deliver outstanding functionality, extended service life, and high operational performance.
3.Furnace Body Construction
The furnace body is fabricated using industrial-grade boiler stainless steel, combining superior corrosion resistance with high mechanical strength. It is engineered to perform consistently under extreme temperatures and pressures, establishing a resilient and stable base for uninterrupted industrial operation.
4.Kettle Body Architecture
Featuring an innovative dual-compartment build, the kettle consists of an inner vessel fabricated from 345R pressure vessel steel and an outer shell made of Q235B carbon steel. This configuration substantially reinforces structural robustness while optimizing thermal management—effectively minimizing energy dissipation and maximizing heat reuse throughout the dewaxing cycle.
Packaging: Wooden box packaging
Transportation: Ocean,Land
Supply Ability: 120piece/year
Certificate: ISO 9001:2015
Port: qingdao
Payment Type: T/T
Incoterm: FOB,CIF,EXW
