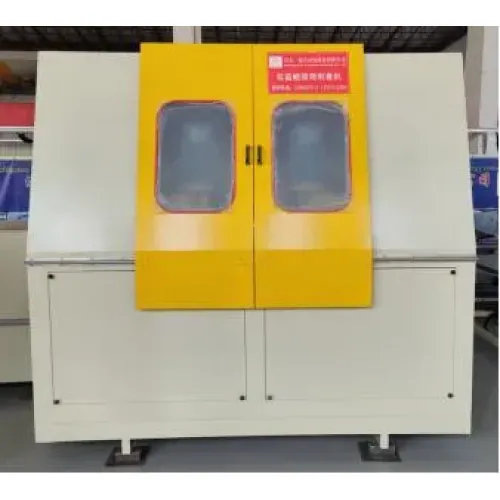

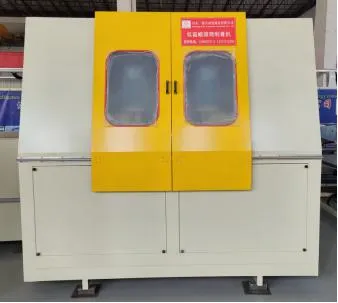

Low temperature wax paste making machine

Low temperature wax paste making machine

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	Qingdao
option:

$12940-12980 /Piece/Pieces

12940~12980USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information

Product Attributes

Model No.: YN-ZGJ-140D

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Other, Manufacturing Plant

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	wooden box
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1.Technical Parameters

Model	YN-ZGJ-140D
Volume of wax box	140 L
Blade spee	950 r/min (adjustable with variable frequency)
Power	2.2kw
Drum speed	14 r/min

2.Main feature

1. Equipment Components and Structure

This equipment consists of a liquid wax storage tank, a paste drum, dual wax paste mixing drums, a water cooling system, and a wax delivery system.

Inner Tank: Welded with 304 stainless steel for corrosion resistance.

Heating Layer: The middle layer is a 2mm stainless steel structure with a built-in independent electric heater, using water as the heat transfer medium for uniform temperature control.

Insulation Layer: The outer layer is covered with rock wool insulation to reduce heat loss and prevent surface burns.

2. Intelligent Temperature Control System

The heating temperature is precisely set by a temperature controller and monitored in real time by a temperature sensor.

When the set temperature is reached, the system automatically shuts off the heating power and immediately restarts when the temperature drops, ensuring constant temperature control.

3. Double Safety Protection

The heating belt is equipped with a manual knob for temperature control, with an adjustable upper temperature limit.

If the temperature rises abnormally, the system will forcibly shut off the power to prevent overheating. 4. Paste-Making Process Control

A cold water circulation system and variable frequency speed control technology precisely adjust the wax paste's hardness and molding speed.

Multiple gear adjustments are supported to accommodate diverse production needs.

Supply Ability & Additional Information

Packaging: wooden box

Transportation: Ocean,Land

Supply Ability: 120piece/year

Certificate: ISO 9001:2015

Port: Qingdao

Payment Type: T/T

Incoterm: FOB,CIF,EXW
