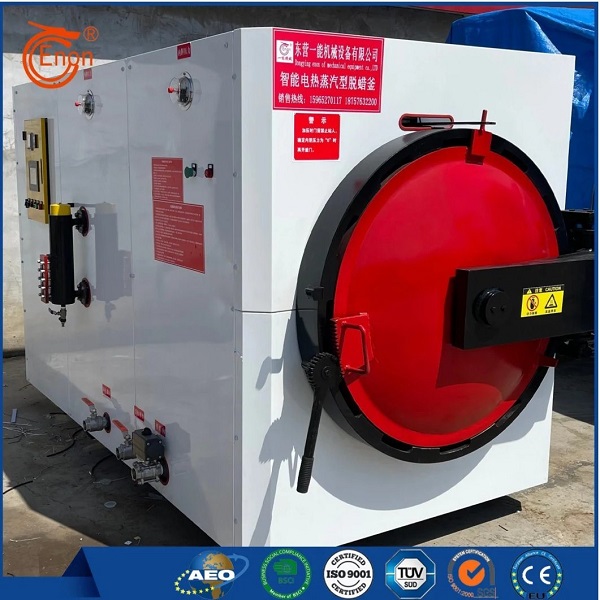

Investment casting low temperature wax dewaxing kettle

Investment casting low temperature wax dewaxing kettle

Payment Type:	T/T
Incoterm:	EXW,FOB
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	Qingdao
option:	YN-DTF-1200CC

$23824- /Piece/Pieces

23824USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: YN-DTF-1200CC

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Energy Saving

Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Machinery Repair Shops, Manufacturing Plant, Other

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	woodenbox
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1.Technical parameter

Product name	Investment casting low temperature wax dewaxing kettle
Model	unit	YN-DTF-1200CC
Dewaxing machine inner tank size	mm	Φ1200×1500 mm (inner tank material 304 stainless steel)
Rated working pressure	MPa	0.5
Rated working temperature	℃	150℃
Rated heating power	KW	153
Power supply	HZ	380V 50HZ
Water pump parameters		pressure (1.05MPa), flow (2.4T/H), power (3KW)
Equipped turnover vehicles		two; turnover baskets: two; water tank: one

Note: The equipment specifications and models can be customized according to customer requirements.

2.Product advantages
1. High dewaxing efficiency and short production cycle

High-temperature, high-pressure steam heats quickly and efficiently, completing dewaxing in minutes. This significantly reduces the time required for a single dewaxing cycle and improves production efficiency.

2. Thorough dewaxing and high-quality mold shells

High-pressure steam penetrates the complex and delicate cavities of the mold shell, ensuring complete melting of the wax.

The steam pressure effectively squeezes the viscous wax from the mold shell, significantly reducing wax residue. Less wax residue means less smoke and residue during subsequent firing, significantly reducing the risk of defects such as mold cracking, bulging, and porosity, and improving casting yields.

3. High wax recovery rate and high quality

The removed wax flows directly into a collection tray, where it separates from the condensed water, making recovery simple and convenient.

The wax melts in the steam environment, resulting in minimal oxidation, minimal color change, and stable performance. It can be reused after simple processing, reducing the cost of new material.

4. Minimal damage to mold shell strength

Although the steam temperature is high, the heating process is relatively uniform throughout, avoiding localized overheating and thermal shock, and reducing the possibility of mold shell cracking due to thermal stress. Compared to hot water dewaxing, mold shell strength is maintained better.

5. High degree of automation and ease of operation

Modern dewaxing kettles typically utilize PLC automatic control systems, which can preset and store dewaxing process profiles (such as pressure increase, pressure hold, and pressure release times), enabling fully or semi-automatic operation. This reduces reliance on operator experience and ensures process stability and repeatability.

6. Energy saving and environmental protection

Compared to hot water dewaxing, which requires heating large amounts of water, steam dewaxing consumes relatively less energy.

This improves the working environment, preventing the high levels of moisture and odor that can enter the workshop during hot water dewaxing, making it cleaner and more environmentally friendly.

7. Safety and reliability

As a pressure vessel, the equipment is designed and manufactured in strict accordance with relevant safety standards and is equipped with safety valves, pressure sensors, temperature sensors, and mechanical safety interlocks to ensure safe and reliable operation.
