Investment casting machine wax tree dewaxing system

Investment casting machine wax tree dewaxing system

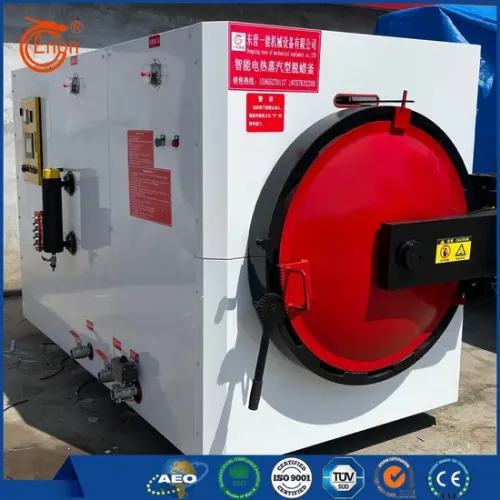

Name: Investment Casting Foundry Dewaxing Machine1
Uploaded: 2025-06-23T09:59:05+08:00
Description: 1. Kettle Body The kettle body adopts a double-tank design, with the inner tank constructed from

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	qingdao
Model:	YN-DTF-1200Z

$23240- /Piece/Pieces

23240USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information

Product Attributes

Model No.: YN-DTF-1200Z

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Manufacturing Plant, Other

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Wooden box packaging
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1. Kettle Body

The kettle body adopts a double-tank design, with the inner tank constructed from high-strength 345R material and the outer tank constructed from Q235B material. This unique structural design not only enhances the equipment's strength and thermal insulation, but also effectively improves heat utilization, making the dewaxing process more efficient and energy-efficient.

Kettle Door

The kettle door utilizes a gear ring structure and is equipped with both mechanical and electronic interlocks, providing dual safeguards for safe and trouble-free operation. The sealing ring is embedded in the design, with air pressure pushing out the seal upon intake, ensuring a reliable seal. The door hinges and bearing seats are constructed from high-strength materials and have a limit stop after full opening, effectively preventing damage and the door from falling, ensuring long-term stable operation of the equipment.

2,Technical parameter

Model	YN-DTF-1200Z
working space	φ1200×1500mm
working pressure	0.85MPa
working temperature	185ºC
Design pressure	0.95MPa
Voltage regulating range	0~0.85MPa
Boost rate	0.6MPa/5s
power	380V/50Hz 153kw
dimensions	4250×2050×2150
weight	4.2T

3. Water Supply System

The water supply system is equipped with a high-precision probe sensor and a delayed water supply program, enabling real-time water level monitoring and precise control of water supply timing. This system not only ensures accurate water level control but also effectively prevents water supply from interfering with dewaxing pressure, ensuring more stable and reliable equipment operation.

4. Valve System

The valve system includes the air inlet valve, exhaust valve, and wax drain valve, all of which utilize advanced sealing technology to ensure reliable operation. These valves play a critical role in the dewaxing process, precisely controlling the flow and pressure of steam to ensure smooth dewaxing.

Electrical Control System

The electrical control system utilizes advanced microcomputer control technology, boasting a high degree of intelligence and automation. The user interface is simple and intuitive, allowing operators to complete complex dewaxing processes with simple operations. The system also features comprehensive protection features, monitoring equipment operating status in real time. Upon detecting any abnormalities, it immediately issues an alarm and takes appropriate measures to ensure the safety of both equipment and operators.

III. Technical Highlights: Comprehensive Safety and EfficiencyWhen the water level falls below the set point, a water shortage alarm sounds, simultaneously shutting off the heater power to prevent dry-burning. An overtemperature alarm sounds when the temperature rises abnormally, protecting the equipment from heat damage. The process time alarm thoughtfully reminds operators when the process time has expired, ensuring precise control of the production process. Furthermore, a safety valve automatically opens in the event of abnormal pressure, providing a final line of defense for equipment safety.

Supply Ability & Additional Information

Packaging: Wooden box packaging

Transportation: Ocean,Land

Supply Ability: 120piece/year

Certificate: ISO 9001:2015

Port: qingdao

Payment Type: T/T

Incoterm: FOB,CIF,EXW
