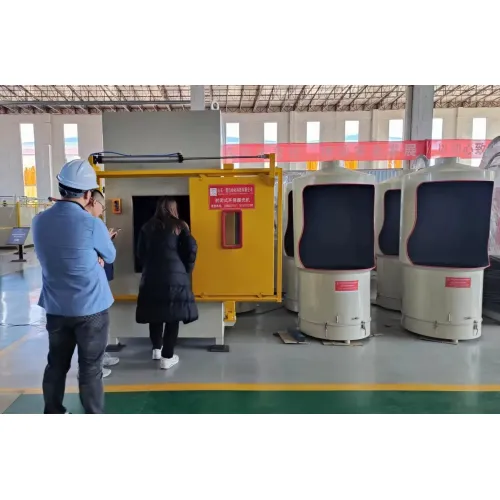

Single Station Enclosed Shell Shaker

Get Latest Price

Min. Order:

Contact Now

Product Description

Product Attributes

Packaging & Delivery

Product Description

Product Attributes

Model No.: YN-ZKJ-950

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2019

Core Component Warranty Period: 1 Year

Core Components: Plc, Engine, Bearing, Gear

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Packaging & Delivery

The file is encrypted. Please fill in the following information to continue accessing it

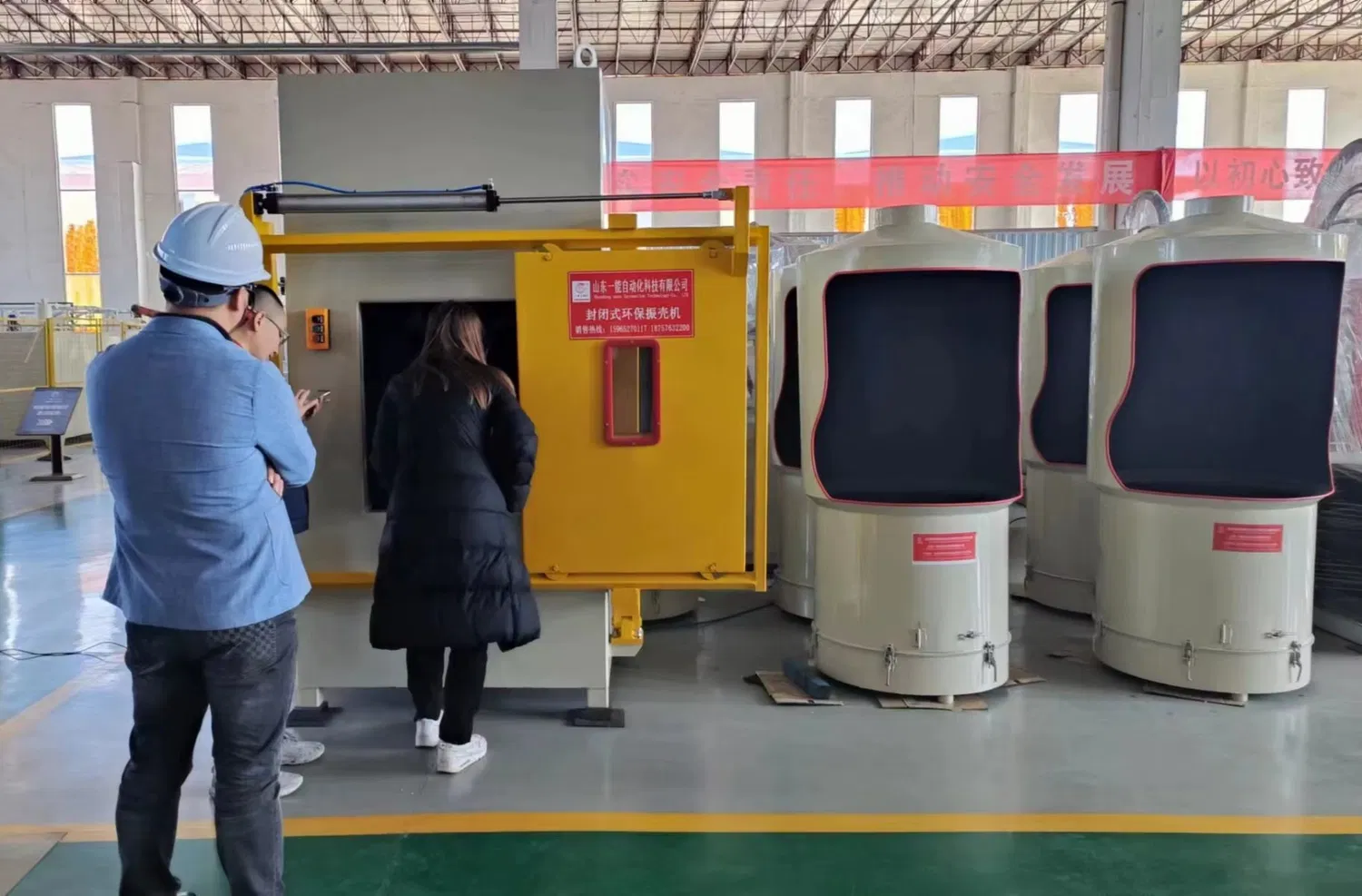

Shell Shaker



Product Description

1,Technical parameters

Model	YN-HZK-950*2
Can be installed in the shell space	500X450mm
Maximum height of pickaxe:	600mm
Vibrating rod lifting heigh	300mm
Countertop size	500×630mm
Dimensions	(L)2600×(W)1400×(H)2600mm

2,Main structural features:

1. This machine uses CB-87 crusher to provide impact energy, and the impact operation is controlled by remote pneumatic and electronic control.
2. The chassis of this machine is installed on a vibration-isolating cement foundation to reduce ground-borne noise. At the same time, this machine adopts a cover-type sound insulation and sound-absorbing system to completely isolate the equipment from the outside world when vibrating the shell, blocking air-borne noise and making the ground Absorb vibration energy to ensure the operating noise of this machine is less than 120dB

3. The lower slag opening of this machine is sealed by a side push of a cylinder, and is equipped with a residual material conveying device.

4. The whole machine is welded with section steel and hot-rolled steel plates to ensure high strength and low vibration and noise.

5. The sound insulation materials are fire-proof and high-temperature resistant, and can absorb efficiently.
