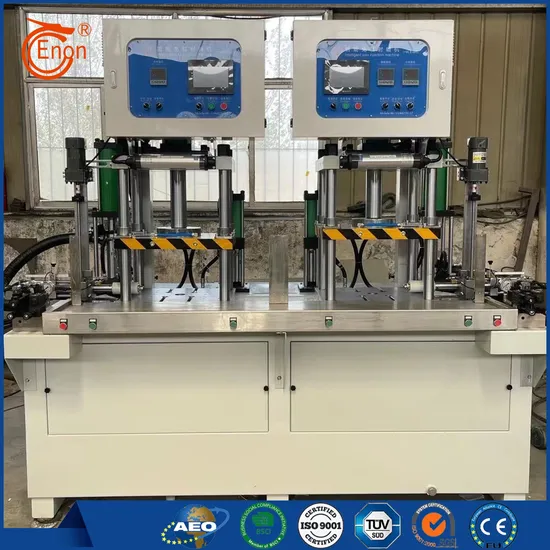

double-station wax injection machine for casting

double-station wax injection machine for casting

Transportation:	Ocean,Land
Port:	q,i,n

$217601-4 Piece/Pieces
$21700≥5 Piece/Pieces

$ 21700 - 21760 / Piece/Pieces

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information

Product Attributes

Model No.: YN-SMZ-10LB-Y

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, No Service, Spare Parts, Field Maintenance And Repair Service

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Other, Manufacturing Plant

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Wooden box packaging
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1.Technical parameter

Explain	Unit	YN-SMZ-10LB-Y
Clamping force (max)	T	10
Mold use space(L×W×H)	mm	460×430×500
Minimum height of the mold	mm	100
hydraulic oil tank	L	150
PLC+Touch screen	YES/NO	YES
The nozzle is electrically powered up and down	YES/NO	YES
Mold use form		Can be up and down fixed automatic mode, hand push single mode or double mode
Paraffin pressure form		Single and multiple segments can be selected
Maximum wax injection (wax cylinder)	L	3.3
Maximum injection pressure	MPa	0~10 (Hydraulic variable pressure control )

2.Description

1. This intelligent Wax Injection Machine features a 10-inch full-color LCD touchscreen and an integrated Delta PLC control system. All process parameters (including temperature, time, and core extraction and insertion) can be centrally configured on the screen. The intuitive and concise human-machine interface ensures simple and efficient operation.

2. Each workstation is equipped with three pneumatic core pullers, each featuring a single-head magnetic induction cylinder design. Customers simply connect the air tubing (outer diameter: 10.0mm) to the corresponding core pull port on the mold. The sequence and signal triggering time for each core pull can be independently set via the touchscreen, providing flexible and convenient operation.
