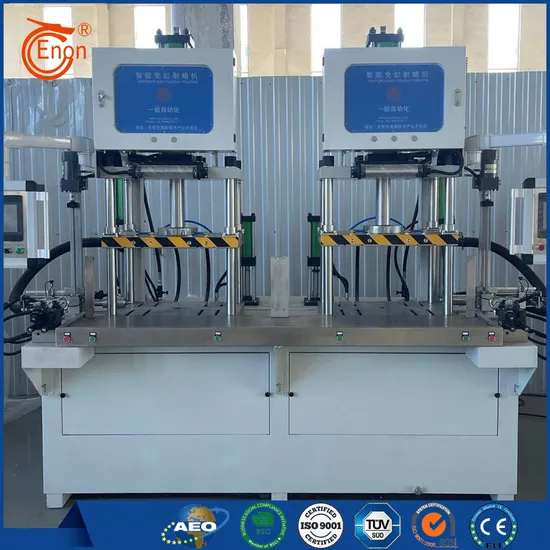

Intelligent column type 16T wax injection machine

Intelligent column type 16T wax injection machine

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	Qingdao Port
Model:	YN-SMZ-16LB-Y

$24700- /Piece/Pieces

24700USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information

Product Attributes

Model No.: YN-SMZ-16LB-Y

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Manufacturing Plant, Other

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Wooden box packaging
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1.Configuration instructions

1.The 10- to 16-ton, dual-station Wax Injection Machine utilizes a horizontal design, offering advantages such as high stability and ease of operation. The machine primarily consists of a machine body, mold clamping mechanism, wax injection unit, control system, and cooling system. The machine body is constructed of high-strength steel and undergoes rigorous welding and machining processes to ensure its strength and rigidity, capable of withstanding the various forces exerted during operation.

2.The mold clamping mechanism utilizes advanced hydraulic drive technology, enabling fast and smooth mold closing and opening. During the mold closing process, precise control of hydraulic system pressure ensures a tight mold closure and prevents wax leakage. The wax injection unit comprises a wax tank, wax pump, and nozzle. After the wax is heated and stirred in the wax tank, it is pressurized by the wax pump and injected through the nozzle into the mold cavity.

2.Technical parameter

Explain	Unit	YN-SMZ-16LB-Y
Mold use space(L×W×H)	mm	520×570×600
Up and down the mold trip	mm	600
Minimum height of the mold	mm	100
Paraffin pressure form		Single and multiple segments can be selected
Maximum wax injection (wax cylinder)	L	5.4
Maximum injection pressure	MPa	0~10 (Hydraulic variable pressure control )
Clamping force (max)	T	16
PLC+Touch screen	YES/NO	YES
The nozzle is electrically powered up and down	YES/NO	YES

Supply Ability & Additional Information

Packaging: Wooden box packaging

Transportation: Ocean,Land

Place of Origin: CHINA

Supply Ability: 120piece/Year

Certificate: ISO 9001:2015

Port: Qingdao Port

Payment Type: T/T

Incoterm: FOB,CIF,EXW
