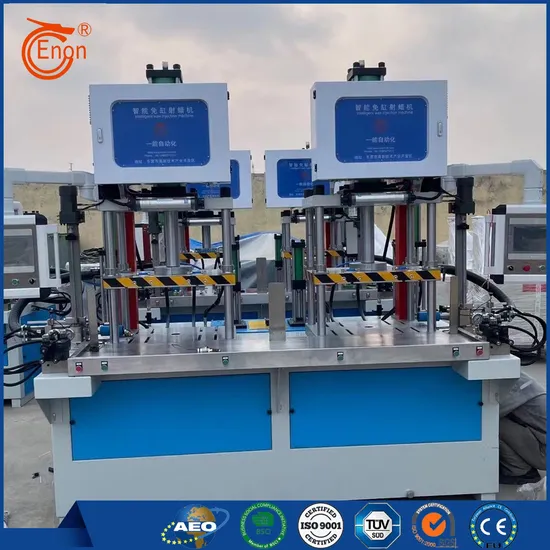

Hot sale Double Column Wax Injection Machine

Hot sale Double Column Wax Injection Machine

Payment Type:	T/T
Incoterm:	FOB,EXW,CIF
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	Q,i,n

$21760≥1 Piece/Pieces

$ 21760 / Piece/Pieces

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information

Product Attributes

Model No.: YN-SMZ-10LB-Y

Brand: Enon

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Wooden box packaging
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1.Description

1. Equipped with a secondary wax injection function and a boost and pressure feeding function. The secondary wax injection function allows for a second injection of an appropriate amount of wax into the mold after the first wax injection, based on the wax pattern's molding progress. This ensures that details are fully filled, improving the surface quality and dimensional accuracy of the wax pattern. The boost and pressure feeding function replenishes wax into the mold by increasing pressure during the wax pattern's cooling and shrinkage process, compensating for volume changes caused by shrinkage. This effectively reduces defects such as shrinkage cavities and porosity within the wax pattern, further improving its quality.

2. Wax Injection Flow Control: The wax injection flow rate and speed can be adjusted to suit different products. Precisely adjusting the wax injection flow rate can meet the specific requirements of different wax product types. For example, wax patterns with fine surface textures or thin-walled structures require a smaller and more stable wax injection flow rate to ensure that the wax fills the mold slowly and evenly, avoiding damage to details or cracking of thin-walled areas due to excessive flow. For large, thick wax patterns, the injection flow rate can be increased to speed up production.

2.Technical parameter

Explain	Unit	YN-SMZ-10LB-Y
Clamping force (max)	T	10
Mold use space(L×W×H)	mm	460×430×500
Up and down the mold trip	mm	400
Minimum height of the mold	mm	100
Mold use form		Can be up and down fixed automatic mode, hand push single mode or double mode
Paraffin pressure form		Single and multiple segments can be selected
Maximum wax injection (wax cylinder)	L	3.3
Maximum injection pressure	MPa	0~10 (Hydraulic variable pressure control )
hydraulic oil tank	L	150
PLC+Touch screen	YES/NO	YES
The nozzle is electrically powered up and down	YES/NO	YES

Supply Ability & Additional Information

Packaging: Wooden box packaging

Transportation: Ocean,Land

Place of Origin: CHINA

Supply Ability: 120piece/Year

Certificate: ISO 9001:2015

Port: Q,i,n

Payment Type: T/T

Incoterm: FOB,EXW,CIF
