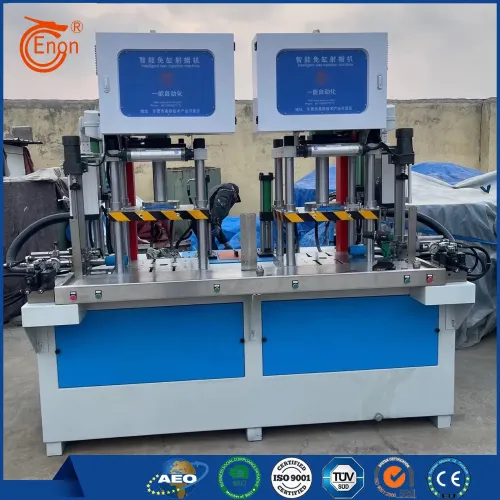

Column Slide Plate Unloading Wax Injection Machine

Column Slide Plate Unloading Wax Injection Machine

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	Qingdao Port
Model:	YN-SMZ-10LB-Y

$21760- /Piece/Pieces

21760USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information

Product Attributes

Model No.: YN-SMZ-10LB-Y

Brand: Enon

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Wooden box packaging
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1,Technical parameter

Explain	Unit	YN-SMZ-10LB-Y
Clamping force (max)	T	10
Mold use space(L×W×H)	mm	460×430×500
Up and down the mold trip	mm	400
Minimum height of the mold	mm	100
hydraulic oil tank	L	150
PLC+Touch screen	YES/NO	YES
The nozzle is electrically powered up and down	YES/NO	YES
Mold use form		Can be up and down fixed automatic mode, hand push single mode or double mode
Paraffin pressure form		Single and multiple segments can be selected
Maximum wax injection (wax cylinder)	L	3.3
Maximum injection pressure	MPa	0~10 (Hydraulic variable pressure control )

2,Configuration instructions

2.1 Control System: Utilizes an advanced touchscreen and German Siemens PLC control system. The intuitive and concise touchscreen interface allows operators to easily set and adjust various process parameters, such as injection pressure, time, and temperature, enabling seamless human-machine interaction. The Siemens PLC, as the core of the control system, boasts exceptional stability and reliability, precisely controlling every aspect of the equipment to ensure accurate and consistent operation. Furthermore, the control system can store 100 sets of product data and process parameters, enabling users to quickly access these settings when producing different products. This significantly reduces process debugging time and improves production efficiency.

2.2 Ejection System: The machine features an ejection system, enabling automated operation during mass production. Once the wax pattern is formed, the ejection system accurately ejects it from the mold according to a pre-set procedure, reducing the workload and time required for manual removal, lowering labor costs. It also prevents damage to the wax pattern during manual removal, improving product yield.

Supply Ability & Additional Information

Packaging: Wooden box packaging

Transportation: Ocean,Land

Place of Origin: CHINA

Supply Ability: 120piece/Year

Certificate: ISO 9001:2015

Port: Qingdao Port

Payment Type: T/T

Incoterm: FOB,CIF,EXW
