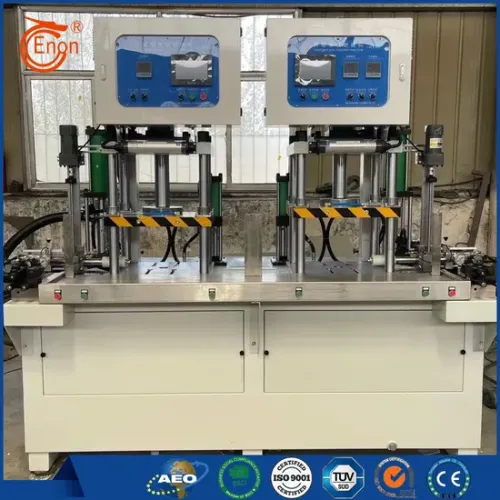

Wax Injection Machine for Precision Casting

Wax Injection Machine for Precision Casting

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	Qingdao,Guangdong,Tianjin
Model:
option:	YN-SMZ-10LB-Y

$24700- /Piece/Pieces

24700USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information

Product Attributes

Model No.: YN-SMZ-10LB-Y

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc, Motor, Gear, Pump

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Other

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Wooden box packaging
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1.Configuration instructions

1. Electrical components: Chint , PLC programmer for Taiwan Delta series, close switch series components for Omron, Japan.

2.Hydraulic system: the hydraulic valve is Taiwan oil research; the hydraulic motor is Taiwan Group; the hydraulic pump is Taiwan Gree, the circulating motor pump is Taiwan Weiliang; the drum-cylinder seal is Japan NOK; the oil cylinder is Jinan Yuci Branch.

3.The main engine is made of δ 20 hot plate welding, the inner layer of the wax box is 304 stainless steel plate welding, the wax cooling system is made of three pipes, and the wax pipe is welded by pickling.

2.Technical parameter

Explain	Unit	YN-SMZ-10LB-Y
Clamping force (max)	T	10
Mold use space(L×W×H)	mm	460×430×500
Up and down the mold trip	mm	400
Minimum height of the mold	mm	100
hydraulic oil tank	L	150
PLC+Touch screen	YES/NO	YES
Maximum wax injection (wax cylinder)	L	3.3
Maximum injection pressure	MPa	0~10 (Hydraulic variable pressure control )

3.Description
3.1. The nozzle is adjustable, which can be adjusted with the mould up, down, left, right and back.
3.2. Wax flow pressure and flow are controlled separately. It can realize the secondary supercharging, so as to effectively prevent the wax mold shrinkage, the wax quality is better.
3.3. Hydraulic components and electrical components are imported, stable and reliable performance, high cost performance.
3.4. According to customer requirements, the machine can achieve automatic timely control of temperature, pressure and flow.

3.5. Wax-free cylinder is adopted to shorten the production process of precision casting. There is no need to stand for 24 hours through the wax incubator.
3.6. Three-layer wax tube cooler, heating or cooling by heat medium oil, wax temperature control, reliable performance. The temperature error is controlled within ±0.5ºC and the shrinkage rate is controlled within 0.5%.
4.Transport package
The equipment is packaged in wooden crates to ensure safety during transportation.

Supply Ability & Additional Information

Packaging: Wooden box packaging

Transportation: Ocean,Land

Supply Ability: 500piece/Year

Certificate: ISO 9001:2015

Port: Qingdao,Guangdong,Tianjin

Payment Type: T/T

Incoterm: FOB,CIF,EXW
