Model No.: YN-DTF-1000Z
Brand: Enon
Place Of Origin: China
Old And New: New
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Marketing Type: New Product 2020
Core Component Warranty Period: 1 Year
Core Components: Plc
Warranty Period: 1 Year
Core Selling Point: Easy To Operate
Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None
Showroom Location (in Which Countries Are There Sample Rooms Overseas): None
Applicable Industry: Manufacturing Plant, Other
| Selling Units: | Piece/Pieces |
| Package Type: | wooden box |
| Picture Example: |
|
The file is encrypted. Please fill in the following information to continue accessing it
| Model | YN-DTF-1000Z | ||||
| working space | φ1000×1100mm | ||||
| working pressure | 0.85MPa | ||||
| working temperature | 185ºC | ||||
| Design pressure | 0.95MPa | ||||
| Voltage regulating range | 0~0.85MPa | ||||
| Boost rate | 0.6MPa/5s | ||||
| power | 380V/50Hz 123kw | ||||
| dimensions | 3250×1740×2150 | ||||
| weight | 2.75T | ||||
3.Product Overview
This system integrates the leading design and manufacturing advantages of both domestic and international counterparts, emphasizing safety, reliability, and practical advanced performance. It delivers rapid heating and efficient dewaxing, offering high thermal efficiency and eco-friendly operation, making it an optimal dewaxing solution for modern precision casting applications.
4.Key Features and Benefits

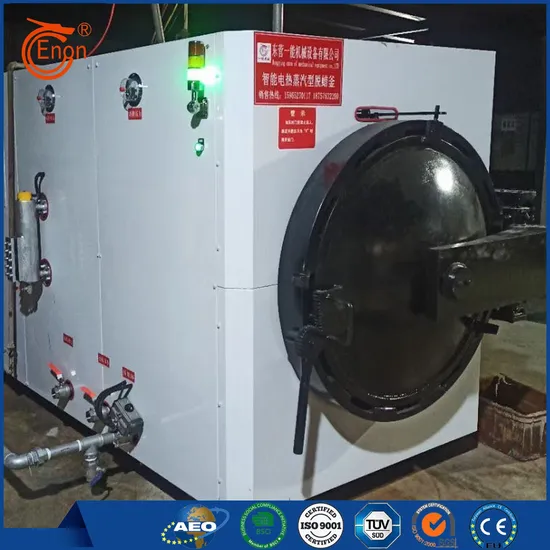

4.1 The DTF electric steam dewaxing boiler incorporates a dual-layer pressure vessel structure. It maintains a stable internal temperature above 150°C, effectively preventing shell cracking and ensuring low moisture content in the reclaimed wax.
4.2 Structural Composition:
The boiler system includes a main body, reinforced base, rapid-opening door, integrated wax collection chamber, heating assembly, electrical control cabinet, and protective enclosure. A dedicated brake-equipped trolley is provided for safe and stable transport of mold shells and baskets, facilitating efficient dewaxing operations.
The unit is enhanced with multiple safety and control functions:
A safety interlock prevents the door from opening while the exhaust valve is engaged, substantially improving operational security.
Operators can flexibly adjust pressure within the predefined allowable range to suit process requirements.
Dry-fire protection automatically disables the heater if low water level or over-temperature conditions occur, preventing equipment damage.
An over-temperature alarm activates both audible and visual warnings while cutting off heating power to ensure system safety.
A digital temperature indicator provides real-time monitoring for precise process control.
Packaging: wooden box
Transportation: Ocean,Land
Supply Ability: 120piece/year
Certificate: ISO 9001:2015
Port: Qingdao
Payment Type: T/T
Incoterm: CIF,EXW
