Efficient Six-Arm Shell Manipulator

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	Qingdao
Model:	YN-JXS-3/6
option:	YN-JXS-3/6

$38240- /Piece/Pieces

38240USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information

Product Attributes

Model No.: YN-JXS-3/6

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Other, Manufacturing Plant

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Wooden box packaging
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1,technical parameter

Technical indicators	Technical parameter
Outline dimension of single string shell mold	$450mmXH500mm
Center distance between two string shell moulds	500mm
Weight of single string shell mold	≤30kg
Equipment structure	Three arms and six hands
work efficiency	≥1 string/20-25s
Rotation angle of main column	0-360°(Continuous rotation)
Rotation index of main column	120°/3 stations
Rotation speed of main column	90 °/0-10s (adjustable)
Movement angle range of clamping module	-10 ° to 135 ° (centered on the vertical line of the ground plane)
Up and down (z-axis) stroke of station	0-700mm (adjustable)
Lifting rotation speed	180 °/0-10 seconds (adjustable)
Swing rotation speed	180 °/0-10 seconds (adjustable)
Self rotation angle of workpiece	360 ° (continuous rotation)
Self rotation speed of workpiece	5-40 rpm (adjustable)
Pick up mode	Manual hanging
Fixture mode	Pneumatic automatic locking
Quickly replace tooling	Quickly replace adaptive clamps according to different hooks

2,Benefit description

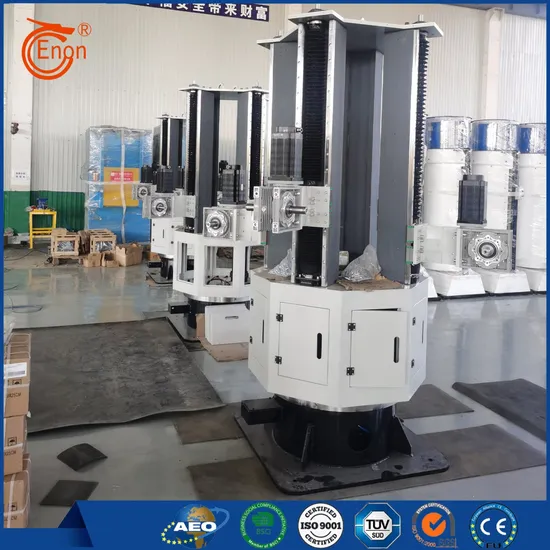

Innovative Three-Head, Six-Arm Shell-Making Robot Summary:

The three-head, six-arm shell-making robot is a cutting-edge robotic arm system designed for efficient and precise shell-making processes.

With its six arms and three heads, the robot easily handles complex tasks, making it an essential tool for modern manufacturing facilities.

Key Features:

1. Six-Arm Design: The six-arm configuration increases flexibility and productivity in shell-making operations.

2. Three-Head System: The three-head design enables simultaneous multitasking, reducing production time and increasing efficiency.

3. Precision Control: The robot precisely controls motion, ensuring accurate and consistent results.

4. Easy Integration: Compatible with a variety of manufacturing systems, the robot can be seamlessly integrated into existing production lines.

5. Durable Construction: Constructed of high-quality materials, the robot is durable and designed for long-term, reliable use.

Detailed Description: The three-head, six-arm shell-making robot is revolutionizing the shell-making industry with its advanced design and functionality.

Combining six arms and three heads, this robotic system can perform multiple tasks simultaneously, improving efficiency and productivity.

With precise control and easy integration, the robot is ideal for a variety of manufacturing applications.

Usage scenarios: This robot is ideal for industries requiring high precision and efficiency in housing manufacturing, such as automotive, aerospace, and electronics manufacturing.

It can be used for tasks such as welding, assembly, and material handling.

User reviews: - "This robot has revolutionized our production process, allowing us to increase output while maintaining quality.

" - "The robot's precise control has significantly improved our efficiency and reduced errors.

" - "I highly recommend this product to any manufacturing facility looking to streamline its housing manufacturing process.

" FAQ: Q: Is this robot easy to operate?

A: Yes, it has a user-friendly interface and intuitive controls for easy operation.

Q: Can this robot be customized for specific tasks? A: Yes, the robot can be customized to meet the specific needs of different manufacturing processes.

Supply Ability & Additional Information

Packaging: Wooden box packaging

Productivity: 120piece/year

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 120piece/year

Certificate: ISO 9001:2015

Port: Qingdao

Payment Type: T/T

Incoterm: FOB,CIF,EXW
