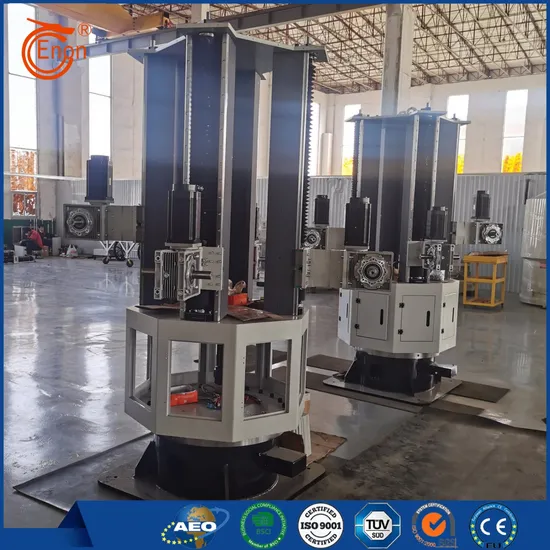

Precision Casting Robot Arm for Shell Making

Precision Casting Robot Arm for Shell Making

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	Qingdao
Model:	YN-JXS-4/8
option:	YN-JXS-4/8

$44120- /Piece/Pieces

44120USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information

Product Attributes

Model No.: YN-JXS-4/8

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Manufacturing Plant, Other

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Wooden box packaging
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1,technical parameter

Technical indicators	Technical parameter
Outline dimension of single string shell mold	$450mmXH500mm
Center distance between two string shell moulds	500mm
Weight of single string shell mold	≤30kg
Equipment structure	Three arms and six hands
work efficiency	≥1 string/20-25s
Rotation angle of main column	0-360°(Continuous rotation)
Rotation index of main column	120°/3 stations
Rotation speed of main column	90 °/0-10s (adjustable)
Movement angle range of clamping module	-10 ° to 135 ° (centered on the vertical line of the ground plane)
Up and down (z-axis) stroke of station	0-700mm (adjustable)
Lifting rotation speed	180 °/0-10 seconds (adjustable)
Swing rotation speed	180 °/0-10 seconds (adjustable)
Self rotation angle of workpiece	360 ° (continuous rotation)
Self rotation speed of workpiece	5-40 rpm (adjustable)
Pick up mode	Manual hanging
Fixture mode	Pneumatic automatic locking
Quickly replace tooling	Quickly replace adaptive clamps according to different hooks

2,Benefit description

High-Precision Shell Casting Robot Arm

Overview: The shell casting robot arm is designed for precision casting applications, providing efficient and precise operation during the shell casting process.

Key Features:

High-precision design ensures precise castings

Rugged construction for long-lasting performance

Efficient operation for increased productivity

Flexible mobility for a wide range of applications

Easy operation and maintenance for user-friendly operation

Detailed Description: The precision casting robot arm is a versatile and reliable shell casting tool suitable for a wide range of industries. It utilizes advanced technology to ensure high precision and efficiency during the casting process. This robot arm is designed to handle complex shell casting tasks and provide consistent, reliable performance. Its rugged construction and flexible mobility make it an ideal choice for a wide range of applications.

Application Scenario: The shell casting robot arm is suitable for foundries, manufacturing plants, and other industrial environments requiring precision casting. It can produce a variety of shell molds with high precision and efficiency.

Gripper: A specially designed gripper is installed at the end of the robotic arm, a key component of the shell-making robot. Utilizing advanced clamping technology, the gripper securely grasps molds of various shapes and sizes. Even in the event of a power or gas outage, the molds will not fall, ensuring safe and reliable production.

The Robot Manipulator Arm for Shell Making is a versatile tool that can be used in a variety of casting applications. It is designed to handle complex shapes and intricate details with ease, making it ideal for producing high-quality

This Precision Casting Manipulator Arm is ideal for a wide range of shell making applications, including automotive, aerospace, and industrial manufacturing. It can handle various casting materials with ease, providing consistent results every time.

Supply Ability & Additional Information

Packaging: Wooden box packaging

Productivity: 120piece/year

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 120piece/year

Certificate: ISO 9001:2015

Port: Qingdao

Payment Type: T/T

Incoterm: FOB,CIF,EXW
