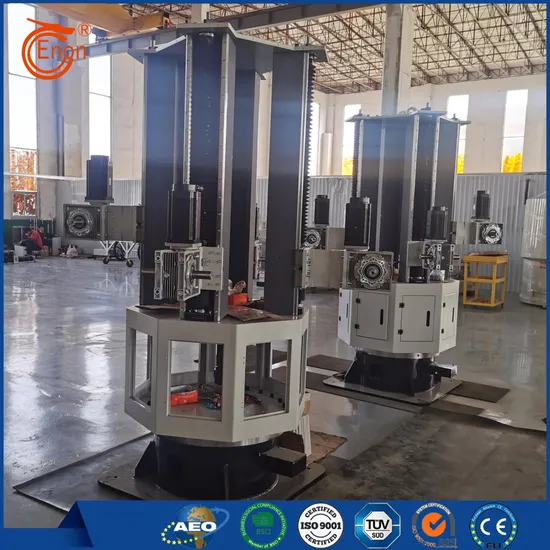

Model No.: YN-JXS-3/6
Brand: Enon
| Selling Units: | Piece/Pieces |
| Package Type: | Wooden box packaging |
| Picture Example: |
|
The file is encrypted. Please fill in the following information to continue accessing it
1,technical parameter | Technical indicators | Technical parameter |
| Outline dimension of single string shell mold | $450mmXH500mm |
| Center distance between two string shell moulds | 500mm |
| Weight of single string shell mold | ≤30kg |
| Equipment structure | Three arms and six hands |
| work efficiency | ≥1 string/20-25s |
| Rotation angle of main column | 0-360°(Continuous rotation) |
| Rotation index of main column | 120°/3 stations |
| Rotation speed of main column | 90 °/0-10s (adjustable) |
| Movement angle range of clamping module | -10 ° to 135 ° (centered on the vertical line of the ground plane) |
| Up and down (z-axis) stroke of station | 0-700mm (adjustable) |
| Lifting rotation speed | 180 °/0-10 seconds (adjustable) |
| Swing rotation speed | 180 °/0-10 seconds (adjustable) |
| Self rotation angle of workpiece | 360 ° (continuous rotation) |
| Self rotation speed of workpiece | 5-40 rpm (adjustable) |
| Pick up mode | Manual hanging |
| Fixture mode | Pneumatic automatic locking |
| Quickly replace tooling | Quickly replace adaptive clamps according to different hooks |
Detailed Description: The robot offers exceptional control and precision, producing high-quality housings that meet the most stringent industry standards.This shell making manipulator is specially designed for precision casting applications. With its three head six arm structure, it can handle multiple tasks simultaneously, improving efficiency and accuracy in the shell making process. Made of high quality materials, this manipulator ensures durability and reliability in operation. It is easy to operate, making it suitable for both experienced professionals and beginners in the industry.
Usage Scenarios: The shell making manipulator is ideal for precision casting workshops, foundries, and manufacturing plants that require high quality and precise shell making processes.
User Reviews: "The three head six arm design of this manipulator is a game changer in our precision casting process. It has significantly improved our efficiency and accuracy." - John, Engineer
Workstation Setup: A three-station turntable structure is employed, encompassing loading and unloading, slurry application, and sanding, all of which can operate independently and simultaneously. Each station is equipped with sensors and control systems that precisely identify and locate the formwork, ensuring each formwork accurately completes its designated operation at the appropriate station.The materials used in the construction of this manipulator are of the highest quality, ensuring durability and reliability in the most demanding industrial environments.Common Questions: Q: Is the manipulator easy to operate? A: Yes, it is designed for ease of use for professionals in the industry.
Packaging: Wooden box packaging
Productivity: 120piece/year
Transportation: Ocean,Land
Place of Origin: China
Supply Ability: 120piece/year
Certificate: ISO 9001:2015
Payment Type: T/T
Incoterm: CIF,EXW,FOB
