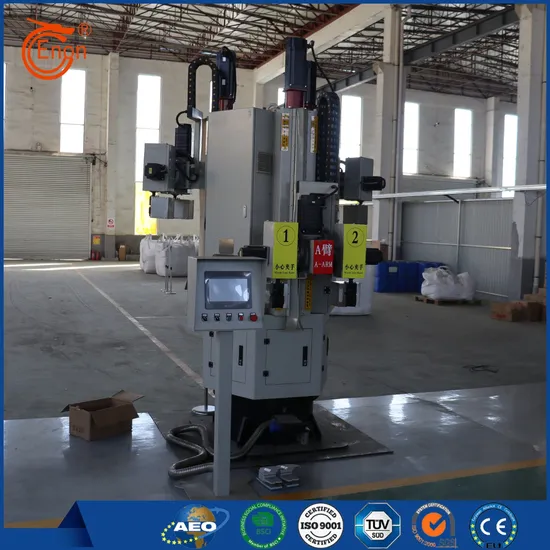

High Efficiency 3500mm Shell Making Manipulator Arm

High Efficiency 3500mm Shell Making Manipulator Arm

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	Qingdao
Model:	YN-JXS-4/8
option:	YN-JXS-4/8

$44120- /Piece/Pieces

44120USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information

Product Attributes

Model No.: YN-JXS-4/8

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Other, Manufacturing Plant

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Wooden box packaging
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1,technical parameter

Technical indicators	Technical parameter
Outline dimension of single string shell mold	$450mmXH500mm
Center distance between two string shell moulds	500mm
Weight of single string shell mold	≤30kg
Equipment structure	Three arms and six hands
work efficiency	≥1 string/20-25s
Rotation angle of main column	0-360°(Continuous rotation)
Rotation index of main column	120°/3 stations
Rotation speed of main column	90 °/0-10s (adjustable)
Movement angle range of clamping module	-10 ° to 135 ° (centered on the vertical line of the ground plane)
Up and down (z-axis) stroke of station	0-700mm (adjustable)
Lifting rotation speed	180 °/0-10 seconds (adjustable)
Swing rotation speed	180 °/0-10 seconds (adjustable)
Self rotation angle of workpiece	360 ° (continuous rotation)
Self rotation speed of workpiece	5-40 rpm (adjustable)
Pick up mode	Manual hanging
Fixture mode	Pneumatic automatic locking
Quickly replace tooling	Quickly replace adaptive clamps according to different hooks

2,Benefit description
The Hot Selling Pneumatic Manipulator is a cutting-edge tool designed to improve efficiency across a wide range of industrial applications.

With its innovative case-forming arm, this manipulator delivers high efficiency and precision when handling tasks. Equipped with advanced technology, this high-performance pneumatic manipulator ensures smooth operation and optimal performance.

Key features include rugged construction, ease of operation, and versatility.

This manipulator is ideal for industries requiring precise and efficient material handling.

It is a must-have tool for any industrial environment looking to increase productivity and streamline operations.

The Hot Selling Pneumatic Manipulator is ideal for assembly lines, manufacturing plants, warehouses, and other industrial environments. Its efficiency and reliability make it a valuable asset for any business looking to increase productivity and reduce manual labor.

Users rave about its durability, ease of use, and ability to easily handle heavy loads.

With its case-forming arm, this manipulator delivers unparalleled efficiency when handling materials of various shapes and sizes.

Say goodbye to manual handling and hello to the productivity boost of a high-performance pneumatic manipulator.

Experience the power and efficiency of the Hot Selling Pneumatic Manipulator today and take your industrial operations to the next level.

Invest in this cutting-edge tool and witness the extraordinary difference it makes for your business.

Supply Ability & Additional Information

Packaging: Wooden box packaging

Productivity: 120piece/year

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 300piece

Certificate: ISO 9001:2015

Port: Qingdao

Payment Type: T/T

Incoterm: FOB,CIF,EXW
