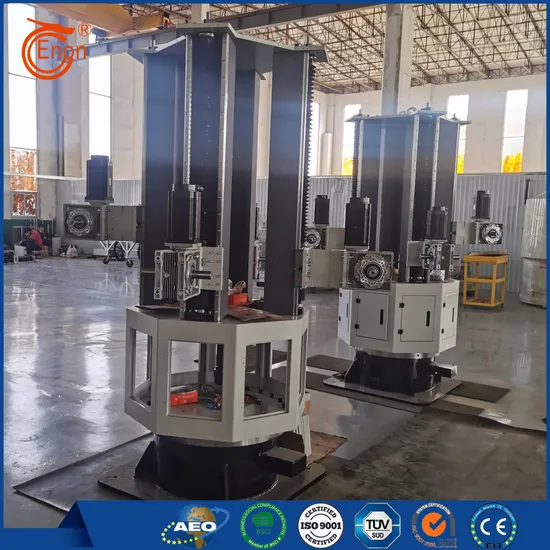

Three-Head Six-Arm Industrial Robotic Arm

Three-Head Six-Arm Industrial Robotic Arm

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	Qingdao
Model:	YN-JXS-3/6
option:	YN-JXS-3/6

$38240- /Piece/Pieces

38240USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information

Product Attributes

Model No.: YN-JXS-3/6

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Other, Manufacturing Plant

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Wooden box packaging
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1,technical parameter

Technical indicators	Technical parameter
Quickly replace tooling	Quickly replace adaptive clamps according to different hooks
Center distance between two string shell moulds	500mm
Fixture mode	Pneumatic automatic locking
work efficiency	≥1 string/20-25s
Rotation angle of main column	0-360°(Continuous rotation)
Rotation index of main column	120°/3 stations
Rotation speed of main column	90 °/0-10s (adjustable)
Movement angle range of clamping module	-10 ° to 135 ° (centered on the vertical line of the ground plane)
Up and down (z-axis) stroke of station	0-700mm (adjustable)
Lifting rotation speed	180 °/0-10 seconds (adjustable)
Swing rotation speed	180 °/0-10 seconds (adjustable)
Self rotation angle of workpiece	360 ° (continuous rotation)
Self rotation speed of workpiece	5-40 rpm (adjustable)
Pick up mode	Manual hanging
Weight of single string shell mold	≤30kg
Outline dimension of single string shell mold	$450mmXH500mm

2,Benefit description

Hot-Selling Three-Head, Six-Arm Robotic Industrial Case Making Machine

Overview: The three-head, six-arm robot is a cutting-edge industrial case making machine designed for precision and efficiency. Featuring three heads and six arms, it can perform complex tasks quickly and accurately.

Key Features: Utilizing advanced technology, high-quality materials, and a user-friendly interface, this industrial case making machine offers precise control, fast operation, and reliable performance.

Detailed Description: The three-head, six-arm robot is ideal for manufacturing processes requiring the utmost precision and speed. It can be programmed to perform a variety of tasks, from welding and painting to assembly and packaging. Its versatility, efficiency, and ease of operation make this case making machine an essential tool for modern industrial production.

Technical Specifications:

Quick tooling change

Quickly change adapters based on different hook types

Center-to-center distance between two shell molds: 500mm

Clamping method: Pneumatic automatic locking

Working efficiency: ≥1 shell mold/20-25 seconds

Main column rotation angle: 0-360° (continuous rotation)

Main column rotation range: 120°/3 stations

Main column rotation speed: 90°/0-10 seconds (adjustable)

Clamping module motion range: -10° to 135° (centered perpendicular to the ground)

Station vertical (Z-axis) travel: 0-700mm (adjustable)

Lift rotation speed: 180°/0-10 seconds (adjustable)

Oscillating rotation speed: 180°/0-10 seconds (adjustable)

Workpiece rotation angle: 360° (continuous rotation)

Workpiece rotation speed: 5-40 rpm (adjustable)

Pickup method: Manual suspension

Single-row shell mold weight ≤ 30kg

Single-row shell mold dimensions: 450mm x 500mm

Application scenarios: The three-head, six-arm robot is ideal for industrial environments where precision and efficiency are critical. It can be used for a variety of tasks, including welding, painting, assembly, and packaging.

User reviews: Customers rave about the three-head, six-arm robot's precision and speed. They appreciate its ease of use and reliability when performing complex tasks.

Supply Ability & Additional Information

Packaging: Wooden box packaging

Productivity: 120piece/year

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 120piece/year

Certificate: ISO 9001:2015

Port: Qingdao

Payment Type: T/T

Incoterm: FOB,CIF,EXW
