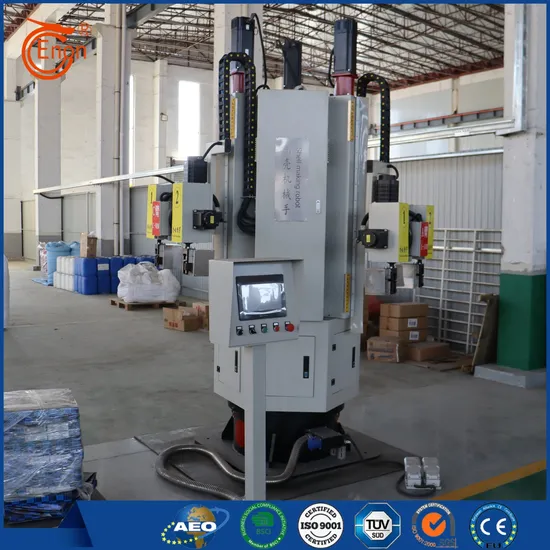

High Precision Shell Making Arm Machinery for Sale

High Precision Shell Making Arm Machinery for Sale

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	Qingdao

$44120- /Piece/Pieces

44120USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information

Product Attributes

Model No.: YN-JXS-4/8

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Other, Manufacturing Plant

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Wooden box packaging
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1,technical parameter

Technical indicators	Technical parameter
Quickly replace tooling	Quickly replace adaptive clamps according to different hooks
work efficiency	≥1 string/20-25s
Weight of single string shell mold	≤30kg
Equipment structure	Three arms and six hands
work efficiency	≥1 string/20-25s
Rotation index of main column	120°/3 stations
Rotation speed of main column	90 °/0-10s (adjustable)
Movement angle range of clamping module	-10 ° to 135 ° (centered on the vertical line of the ground plane)
Up and down (z-axis) stroke of station	0-700mm (adjustable)
Lifting rotation speed	180 °/0-10 seconds (adjustable)
Swing rotation speed	180 °/0-10 seconds (adjustable)
Self rotation angle of workpiece	360 ° (continuous rotation)
Self rotation speed of workpiece	5-40 rpm (adjustable)
Pick up mode	Manual hanging
Fixture mode	Pneumatic automatic locking
Center distance between two string shell moulds	500mm

2,Benefit description

High-Precision Arm Robot for Efficient Manufacturing

Summary: Our precision casting machines, equipped with high-precision manipulators, offer superior performance in industrial applications.

Key Features: - High-precision arm robots ensure precise and consistent results - Precision casting machines for producing high-quality metal parts - High-precision manipulators for smooth and precise motion

Detailed Description: Our high-precision arm robots are designed to meet the demands of modern manufacturing processes.

Leveraging advanced technology and sophisticated engineering, our machines offer unparalleled precision and efficiency.

Precision casting machines are ideal for producing complex metal parts with tight tolerances.

The high-precision manipulators enable precise control and manipulation of objects, making them ideal for performing delicate tasks.

Applications: Our machines are suitable for a wide range of industries, including automotive, aerospace, and electronics.

They can be used for casting, molding, welding, and assembly processes.

User Reviews: - "The high-precision arm robots have significantly improved our production efficiency.

" - John D. - "The precision casting machines consistently produce high-quality parts." - Sarah T.

FAQ: - What is the maximum load capacity of the high-precision manipulator arms?

- Is the precision casting machine easy to operate and maintain? - Can the high-precision manipulators be customized for specific applications?

Supply Ability & Additional Information

Packaging: Wooden box packaging

Productivity: 120piece/year

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 120piece/year

Certificate: ISO 9001:2015

Port: Qingdao

Payment Type: T/T

Incoterm: FOB,CIF,EXW
