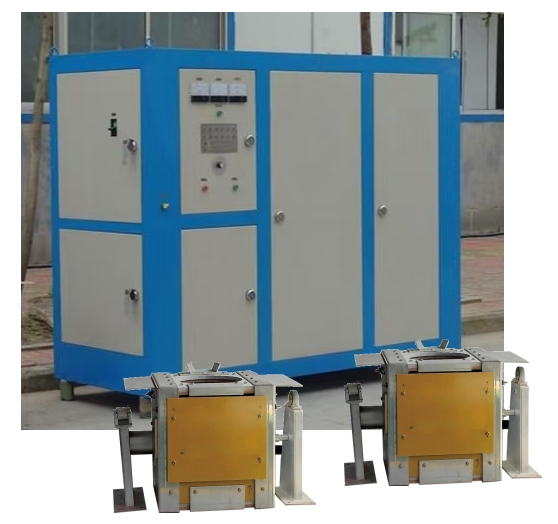

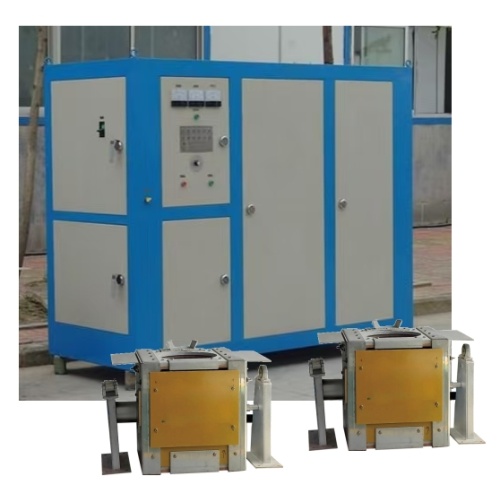

High frequency induction melting furnace

High frequency induction melting furnace

Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Packaging & Delivery

Selling Units:

Piece/Pieces

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

Model	YN-ZPL-100/500
Rated power	175KW
Rated melting	150kg(can be customized)
Rated frequency	3000Hz
Furnace voltage	rated at 1800V
Melting time	less than 25 minutes/furnace (stainless steel)
Input	three-phase 380V, 265A and 50Hz
Output	rated at 175KW and 1800V
External dimension	285011001920mm
Weight	1810kg

Product Description
ΔSupport customization
ΔApplication: For rapid melting of metal materials, it is more advantageous in the process of melting non-ferromagnetic materials such as stainless steel.
ΔIntroduction:
The medium frequency melting furnace is widely used in the fields of cast iron, stainless steel, copper, aluminum, lead, gold, silver, silicon, and special alloys. Because of its fast melting speed, less burning loss, easy to start, automatic stirring, significant power saving, etc., it has been widely praised.
ΔFeatures:
√1. High efficiency: series inverter is adopted to improve the furnace voltage and frequency, which greatly improves the melting speed. There is no need to keep the steel after each batch.Full power operation from feeding to melting, stainless steel 100Kg, melting in 22 minutes, melting in 150kg and melting in 30 minutes.
√2. Energy saving: the main loop of the series resonant inverter of voltage, make small furnace main circuit current, high voltage, copper platoon fever is greatly reduced, improves the energy utilization ratio and melting speed, shorten the melting time, reduce the heat loss of time, thus more energy efficient, tons of steel melting power consumption of about 580 degree, than ordinaryparallel inverter frequency furnace save around 720 degrees.
√3. Low fault:
(1) the series inverter rectifier does not need pressure regulation, so the rectifier control line is more simplified and reasonable, which greatly reduces the fault rate of electric furnace operation.
(2) because of the main circuit element, inverter SCR adopts British westcode SCR, and the support of high quality components further ensures the reliability of electric furnace operation.
(3) the main control cabinet is pure water cooling, and the pure water circulation system formed by the import gran fu pump and heat exchanger makes the internal water circulation system never fouling, and there is temperature switch monitoring for all water circulation, so there is no need to worry about the problem of water cooling.
(4) PC main control board with full integrated circuit is 100%Test)

Supply Ability & Additional Information

Supply Ability: 300piece/Year
