Model No.: YN-DTF-1200Z
Brand: Enon
Place Of Origin: China
Old And New: New
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Marketing Type: New Product 2020
Core Component Warranty Period: 1 Year
Core Components: Plc
Warranty Period: 1 Year
Core Selling Point: Easy To Operate
Out-of-warranty Service: Video Technical Support, Spare Parts
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None
Showroom Location (in Which Countries Are There Sample Rooms Overseas): None
Applicable Industry: Manufacturing Plant
| Selling Units: | Piece/Pieces |
| Package Type: | WOODEN BOX |
| Picture Example: |
|
The file is encrypted. Please fill in the following information to continue accessing it
1,technical parameter | Model | YN-DTF-1200Z | ||||
| working space | φ1200×1500mm | ||||
| working pressure | 0.85MPa | ||||
| working temperature | 185ºC | ||||
| Design pressure | 0.95MPa | ||||
| Voltage regulating range | 0~0.85MPa | ||||
| Boost rate | 0.6MPa/5s | ||||
| power | 380V/50Hz 153kw | ||||
| dimensions | 4250×2050×2150 | ||||
| weight | 4.2T | ||||
2. System Introduction

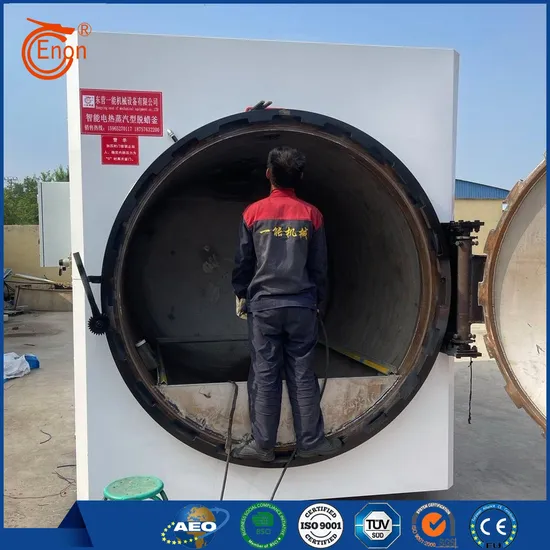

The DTF Series Electrically Heated Steam Dewaxing Autoclave represents a critical advancement in precision casting technology. Developed specifically for processing intermediate investment casting molds, this system combines innovative engineering with manufacturing expertise derived from international industry standards. With a focus on operational safety, process stability, and sustainable performance, it delivers exceptional thermal responsiveness, complete wax elimination, optimized energy utilization, and eco-friendly operation—positioning it as the leading choice for contemporary precision foundry applications.
3. Core Technical Advantages
3.1 Next-Generation Thermal Containment Design
The system features a progressive dual-chamber pressure vessel architecture. During operation, the outer containment zone maintains rigorously regulated thermal and pressure parameters, ensuring the interior surface sustains temperatures above 155°C. This advanced configuration prevents moisture formation, achieves instantaneous thermal stabilization, decreases steam usage by over one-third, substantially reduces mold damage incidents, and produces recycled wax with moisture levels below 0.8%.
3.2 Unified System Framework and Protection Systems
The technical composition includes:
Fortified processing chamber with reinforced support structure
High-velocity sealing gateway with embedded safety verification
Integrated wax separation and retrieval system
Segmented heating arrays with redundant configuration
Smart centralized management platform
Advanced thermal barrier encapsulation
Automated mold handling system with dedicated tooling
Extended component inventory featuring: overpressure safety valve, steam induction/ventilation controls, wax extraction mechanism, effluent management valve, reverse-flow containment, purification system, and smart pressure/thermal metering devices
Packaging: WOODEN BOX
Productivity: 120PICS/YEAR
Transportation: Ocean,Land
Place of Origin: China
Supply Ability: 120PICS/YEAR
Port: QINGDAO
Payment Type: T/T
Incoterm: FOB,CIF,EXW
