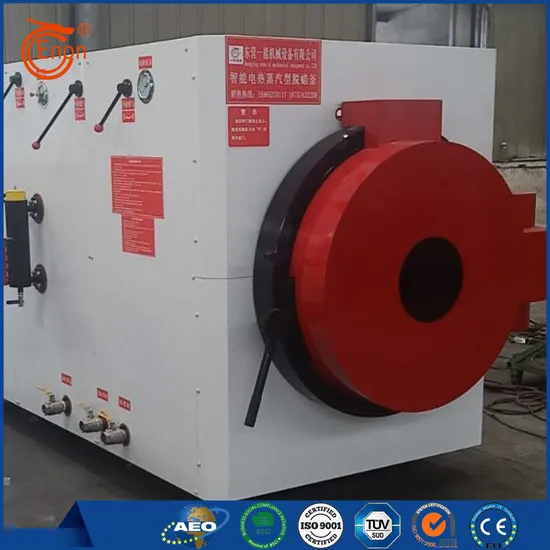

Dewaxing Oven Machine for Investment Casting Foundry

Dewaxing Oven Machine for Investment Casting Foundry

Name: Chinese Factory Produces 1000/1200/1400/1600mm Smelting of Model Structure Dewaxing Boilerclaves/ Kettle for Melting The Model Structure1
Uploaded: 2025-06-23T04:13:10+08:00
Description: 1.The equipment is equipped with external communication capabilities and a water refill protection

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	qingdao
Model:	YN-DTF-1200Z

$23240- /Piece/Pieces

23240USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information

Product Attributes

Model No.: YN-DTF-1200Z

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Other

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Wooden box packaging
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1.The equipment is equipped with external communication capabilities and a water refill protection program. When the shell mold is inserted to initiate the dewaxing process, the system controls the water pump to delay water refill, restarting only after the steam filling period has expired. This ensures that refilling does not affect the dewaxing pressure. If the water level falls below the lower limit or rises above the upper limit, the system detects an abnormality, automatically shuts off the heater power, and issues an audible and visual alarm.

2,Technical parameter

Model	YN-DTF-1200Z
working space	φ1200×1500mm
working pressure	0.85MPa
working temperature	185ºC
Design pressure	0.95MPa
Voltage regulating range	0~0.85MPa
Boost rate	0.6MPa/5s
power	380V/50Hz 153kw
dimensions	4250×2050×2150
weight	4.2T

3.The equipment is equipped with external communication capabilities and a water refill protection program. When the shell mold is inserted to initiate the dewaxing process, the system controls the water pump to delay water refill, restarting only after the steam filling period has expired. This ensures that refilling does not affect the dewaxing pressure. If the water level falls below the lower limit or rises above the upper limit, the system detects an abnormality, automatically shuts off the heater power, and issues an audible and visual alarm.

Supply Ability & Additional Information

Packaging: Wooden box packaging

Transportation: Ocean,Land

Supply Ability: 120piece/year

Certificate: ISO 9001:2015

Port: qingdao

Payment Type: T/T

Incoterm: FOB,CIF,EXW
