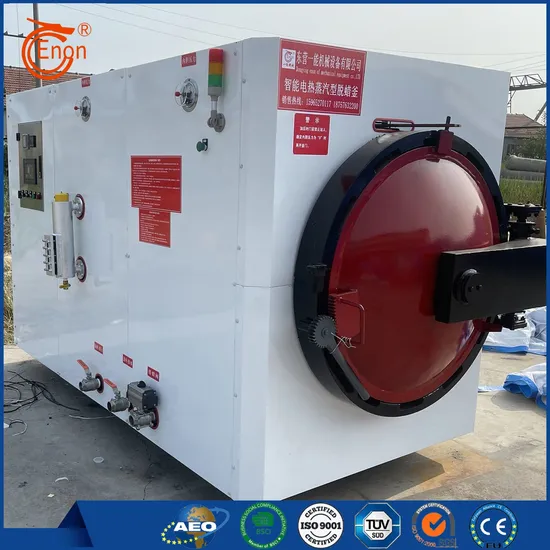

Investment casting equipment electric dewaxing kettle

Investment casting equipment electric dewaxing kettle

Name: Investment Casting Foundry Dewaxing Machine1
Uploaded: 2025-06-23T09:59:05+08:00
Description: 1. The equipment features alarms for water shortage, overtemperature, and process time. Boiler heating is

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	qingdao
Model:	YN-DTF-1200Z

$23240- /Piece/Pieces

23240USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information

Product Attributes

Model No.: YN-DTF-1200Z

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Other, Manufacturing Plant

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Wooden box packaging
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1. The equipment features alarms for water shortage, overtemperature, and process time. Boiler heating is controlled by both temperature and pressure. In the event of abnormal temperature or pressure, the system automatically shuts off the heater power and issues an audible and visual alarm. A safety valve is also included to ensure safety during operation.

2. The equipment comes with a complete pressure vessel qualification certificate and quality assurance certificate, complying with national pressure vessel inspection standards.

3. The equipment is equipped with external communication capabilities and a water refill protection function. When the shell mold is inserted to initiate the dewaxing process, the system controls the water pump to delay water refill until the steam filling time is complete, ensuring that the dewaxing pressure is not affected by water refill. If the water level falls below the lower limit or rises above the upper limit, the system automatically shuts off the heater power and issues an audible and visual alarm.

4,Technical parameter

Model	YN-DTF-1200Z
working space	φ1200×1500mm
working pressure	0.85MPa
working temperature	185ºC
Design pressure	0.95MPa
Voltage regulating range	0~0.85MPa
Boost rate	0.6MPa/5s
power	380V/50Hz 153kw
dimensions	4250×2050×2150
weight	4.2T

Supply Ability & Additional Information

Packaging: Wooden box packaging

Transportation: Ocean,Land

Supply Ability: 120piece/year

Certificate: ISO 9001:2015

Port: qingdao

Payment Type: T/T

Incoterm: FOB,CIF,EXW
