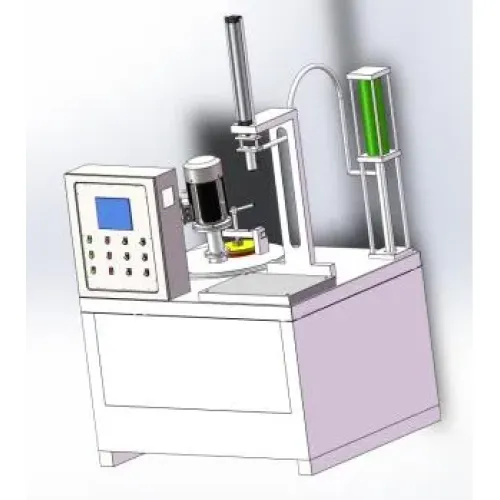

Top Injection Wax Injection Machine with Mixing Barrel

Top Injection Wax Injection Machine with Mixing Barrel

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	qingdao
Model:	YN-DZJ-140S

$12940- /Piece/Pieces

12940USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information

Product Attributes

Model No.: YN-DZJ-140S

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Manufacturing Plant, Other

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Wooden box packaging
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1,Technical parameter

Model	YN-DZJ-140S
working space	500×500×500mm
Nozzle rising/falling stroke	0-500 mm
Working platform	1
Maximum wax temperature	95 °C
Recommended wax pressing temperature	53-60 °C (adjustable according to mold material)
Dimensions of bottom working board	600×600mm
Water cooling pipe of working board	Yes
Height of workbench from the ground	850 mm
Capacity of oil tank for wax extrusion and storage	120 L

1. Significant Energy Savings

This equipment utilizes a low-temperature operating mode (operating at temperatures far lower than traditional high-temperature wax sprayers exceeding 100°C), significantly reducing the energy consumption required to heat the wax, effectively lowering operating costs and delivering significant energy savings.

2. Improved Operational Safety

The low-temperature wax melting and injection process keeps the wax material temperature within a safe range, fundamentally reducing the risk of burns to operators and significantly improving workplace safety. 3. Excellent Dimensional Stability

• Low-shrinkage, low-temperature wax material minimizes volume change during solidification

• Low-temperature injection further reduces thermal shrinkage deformation

These dual advantages ensure higher dimensional accuracy in wax patterns, making them particularly suitable for precision casting production.

4. Excellent Surface Quality

• Low-temperature wax exhibits excellent fluidity in the molten state

• Low-temperature molding effectively avoids defects such as bubbles and flow marks

• Perfectly replicates mold surface details, resulting in a highly polished wax pattern

This ensures the final casting achieves the highest surface quality standards.

5. Significantly Extended Mold Life

• Low-temperature processing significantly reduces thermal shock to the mold

• Specially protects silicone soft molds, slowing aging and deformation

• Effectively reduces the replacement frequency and maintenance costs of expensive molds

6. Simplified Operation and Maintenance

• Simple and efficient equipment design

• Relatively relaxed temperature control system requirements

• Low-temperature properties facilitate cleanup of residual wax, significantly reducing the complexity of daily use and maintenance.

7. Extensive Material Selection

A variety of specialized low-temperature wax materials are available, including:

• Different hardness grades

• Diverse color options

• Controllable shrinkage range

• Special performance formulas meet the diverse needs of various complex parts and different process stages

Supply Ability & Additional Information

Packaging: Wooden box packaging

Transportation: Ocean,Land

Supply Ability: 120piece/year

Certificate: ISO 9001:2015

Port: qingdao

Payment Type: T/T

Incoterm: FOB,CIF,EXW
